Product Details:
|
| Color: | Red | Measurement Range: | 0---1999.9 |
|---|---|---|---|
| Observation Angle: | 0.2° | Angle Of Incidence: | -4° |
| Testing Spot Diameter: | 32mm | Built-in Battery Capacity: | 3500mAh |
| Charger: | DC 8.4V | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| High Light: | 32mm Red Retroreflector Meter,32mm Red retro reflective meter,8.4V Red Retroreflector Meter |
||

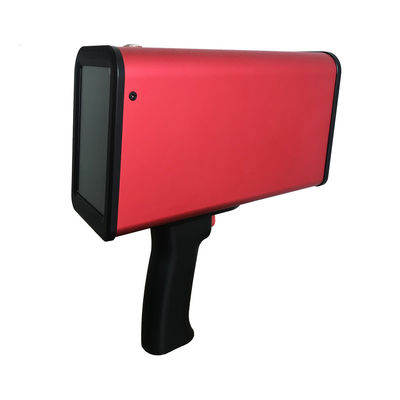

Traffic Sign Retroreflectometer One click calibration Quick detection Accurate data
Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Data storage space | 8GB |
| Built-in battery capacity | 3500mAh |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS: 3-7 working days
Any other shipment way could be negoticated
