Product Details:
|
| Measuring Aperture Area: | 340mm X 95mm | Error Of Repeatability Measurement: | ≤3% |
|---|---|---|---|
| Data Storage Space: | 8GB | Built-in Battery Capacity: | 13Ah |
| Charger: | DC 8.4V | Ambient Temperature: | -15℃~+60℃ |
| Ambient Humidity: | ＜98%, No Frost | Instrument Size: | 700mm X 135mm X 115mm |
| High Light: | 340mm X 95mm Retroreflector Meter,340mm X 95mm reflectometer for road marking,DC 8.4V Retroreflector Meter |
||
UNS-BX1 Patented optical system Accurate data One key calibration Manufacturer Retroreflectometer For Road Markings
This instrument is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.
This instrument is a kind of professional measuring instrument mainly developed by Hefei SYNTOPE International Trade Co., Ltd. This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.
Designed with high precision and high stability structure, this marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.
Main technical parameters
|
Measurement items |
retroreflective coefficient mcd.m-2.lx-1 |
|
Instrument size |
700mm x 135mm x 115mm |
| Measuring aperture area | 340mm x 95mm |
| Observation angle | 1.05° |
| Angle of incidence | 88.76°, Complementary angle is 1.24° |
| Light source color temperature | 2856±50K |

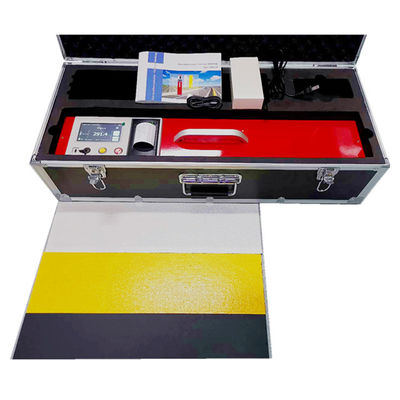

Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
