Product Details:
|
| Measurement Items: | Retroreflective Coefficient Mcd.m-2.lx-1 | Screen: | Touch Screen |
|---|---|---|---|
| Color: | Red | Measurement Range: | 0---4000 |
| Continuous Working Time Of Battery: | ＞72h | Data Storage Space: | 8GB |
| Instrument Size: | 700mm X 135mm X 115mm | Ambient Humidity: | ＜98%, No Frost |
| Angle Of Incidence: | 88.76° | Complementary Angle: | 1.24° |
| High Light: | Red Retroreflectometer,Red retro reflective meter,0-4000 Retroreflectometer |
||

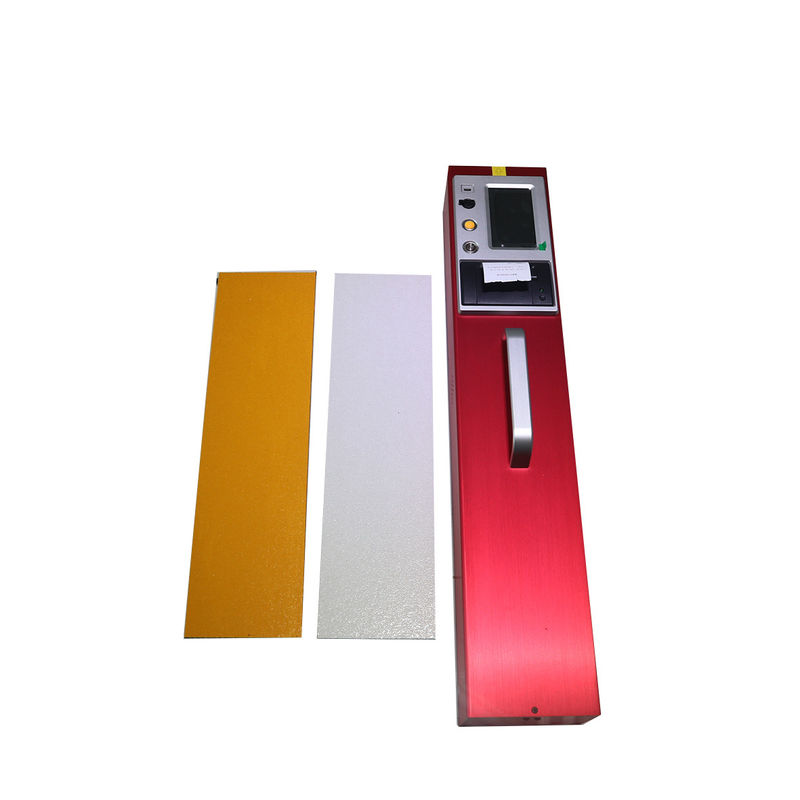

Manufacturer Accurate data One key calibration Retroreflectometer For Road Markings
This instrument is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.
Main technical parameters
| Error of repeatability measurement | ≤3% |
| Measuring aperture area | 340mm x 95mm |
| Observation angle | 1.05° |
| Angle of incidence | 88.76°, Complementary angle is 1.24° |
| Light source color temperature | 2856±50K |
Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
