Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg

Certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
I'm Online Chat Now

Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg

Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg
Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg

Large Image :  Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg

Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-BX1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 80*35*25CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg

Description
Data Storage Space: 8GB Charger: DC 8.4V
Built-in Battery Capacity: 13Ah Measurement Items: Retroreflective Coefficient Mcd.m-2.lx-1
Measurement Range: 0---4000 Continuous Working Time Of Battery: >72h
Instrument Size: 700mm X 135mm X 115mm Angle Of Incidence: 88.76°
Complementary Angle: 1.24° Light Source Color Temperature: 2856±50K
High Light:

2856-50K Pavement Marking Retroreflectometer

,

88.76deg retroreflectometer

,

88.76deg Pavement Marking Retroreflectometer

Accurate data One key calibration  Manufacturer Patented optical system Retroreflectometer For Road Markings

This instrument is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking.  instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.



Main technical parameters



Error of repeatability measurement ≤3%
Measuring aperture area 340mm x 95mm
Observation angle 1.05°
Angle of incidence 88.76°, Complementary angle is 1.24°
Light source color temperature 2856±50K

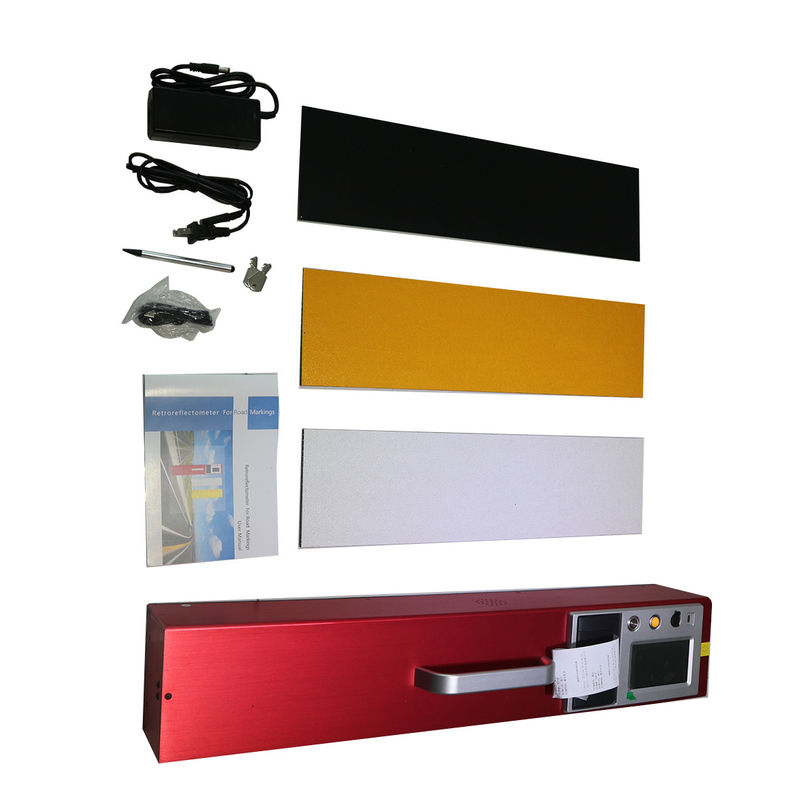

Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg 0



Patented Optical System Pavement Marking Retroreflectometer Angle Of Incidence 88.76deg 1









Our Service





Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.





Shipment



DHL , FEDEX , UPS , TNT , EMS :3-7 working days



Any other shipment way could be negoticated
