Product Details:
|
| Light Source Color Temperature: | 2856±50K (Standard Illuminant A) | Measurement Items: | Retroreflective Coefficient Cd .lx-1 .m-2 |
|---|---|---|---|
| Color: | Red | Measurement Range: | 0---1999.9 |
| Observation Angle: | 0.2° | Angle Of Incidence: | -4° |
| Testing Spot Diameter: | 32mm | Built-in Battery Capacity: | 3500mAh |
| Charger: | DC 8.4V | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| Error Of Repeatability Measurement: | ≤2% | Error Of Reproducibility Measurement: | ≤3% |
| High Light: | 80mm Sign Retroreflectometer,250mm retro reflective meter,0.2deg Sign Retroreflectometer |
||
Manufacturer UNS-JT Reflective logo Retroreflectometer One key detection Patented optical system Accurate data

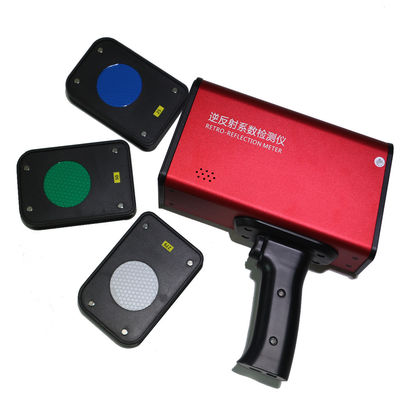

Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Built-in battery capacity | 3500mAh |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |

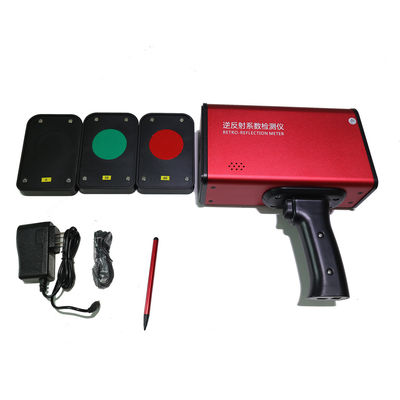

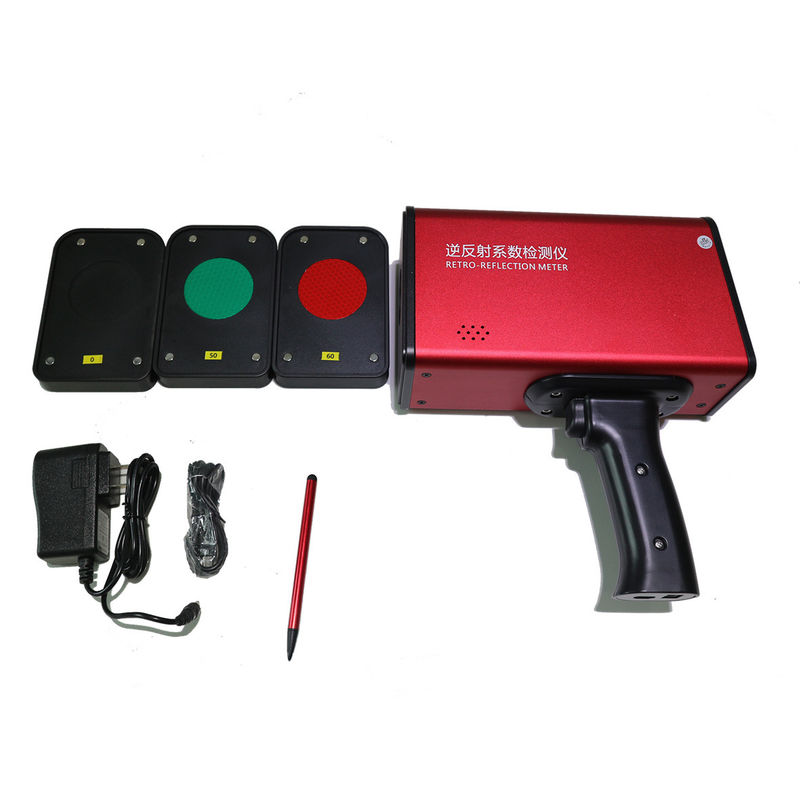

Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
