Home ProductsSign Retroreflectometer

Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm

Certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
I'm Online Chat Now

Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm

Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm
Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm

Large Image :  Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm

Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm

Description
Instrument Size: 200mm × 230mm × 70mm (L×H×W) Measurement Range: 0---1999.9
Observation Angle: 0.2° Angle Of Incidence: -4°
Testing Spot Diameter: 32mm Color: Yellow Grey
Built-in Battery Capacity: 2000mAh Charger: DC 5V
High Light:

200mm Sign Retroreflectometer

,

230mm Portable Retroreflectometer

,

70mm Sign Retroreflectometer

Patented optical system Manufacturer Reflective logo Retroreflectometer UNS2 Accurate data One key detection

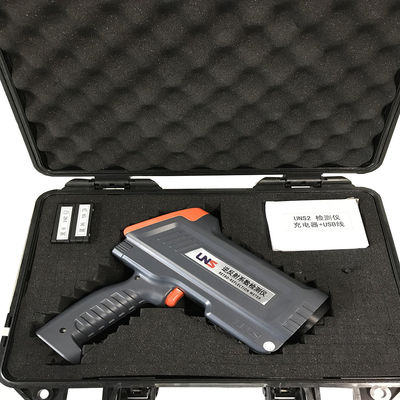

   Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.



   Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.



Main technical parameters

Measurement items retroreflective coefficient cd .lx .m2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Built-in battery capacity 2000mAh
Charger DC 5V
Instrument size 200mm × 230mm × 70mm (L×H×W)





Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1







Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm 0



Patented Optical System Sign Retroreflectometer 200mm × 230mm × 70mm 1









Our Service





Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.





Shipment



DHL , FEDEX , UPS , TNT , EMS :3-7 working days



Any other shipment way could be negoticated
