Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-BX1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 80*35*25CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

One Key Calibration 2856K Mobile Retroreflectometer Observation Angle 1.05deg

Description
Measurement Items: Retroreflective Coefficient Mcd.m-2.lx-1 Measurement Range: 0---4000
Light Source Color Temperature: 2856±50K Continuous Working Time Of Battery: >72h
Angle Of Incidence: 88.76° Complementary Angle: 1.24°
Observation Angle: 1.05° Error Of Repeatability Measurement: ≤3%
Ambient Temperature: -15℃~+60℃ Ambient Humidity: <98%, No Frost
High Light:

1.05deg Mobile Retroreflectometer

,

4000 reflectometer for road marking

,

4000 Mobile Retroreflectometer

One key calibration Manufacturer UNS-BX1 Patented optical system Retroreflectometer For Road Markings Accurate data





   This instrument is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.



   The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.



Main technical parameters



Error of repeatability measurement ≤3%
Measuring aperture area 340mm x 95mm
Observation angle 1.05°
Angle of incidence 88.76°, Complementary angle is 1.24°
Light source color temperature 2856±50K





Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1

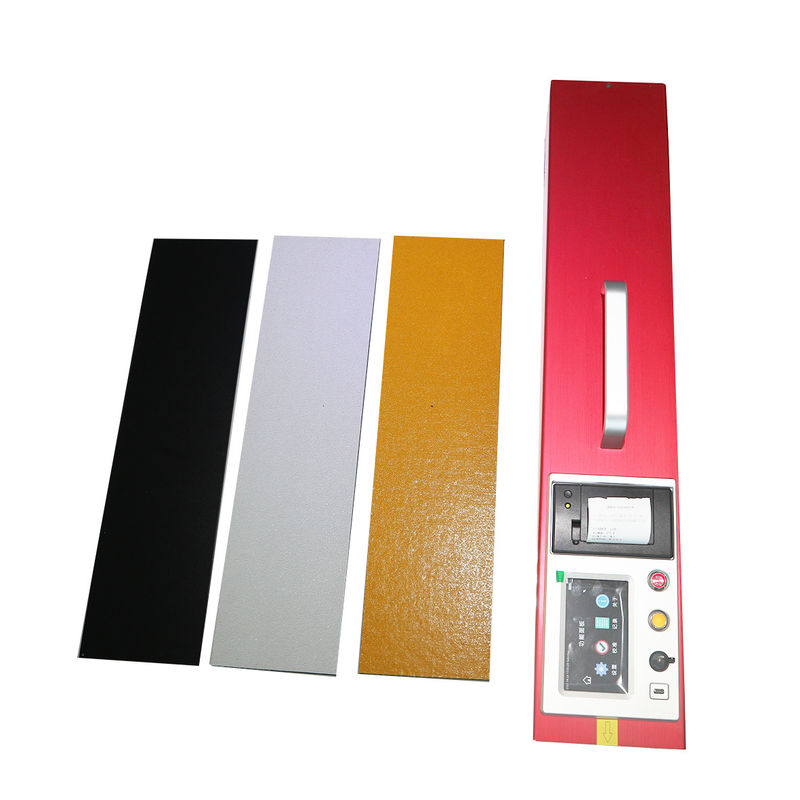

07 Calibration Board 1
08 Stylus 1



One Key Calibration 2856K Mobile Retroreflectometer Observation Angle 1.05deg 0



One Key Calibration 2856K Mobile Retroreflectometer Observation Angle 1.05deg 1
