Traffic Sign Retroreflectometer 220mm × 250mm × 80mm

Certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
I'm Online Chat Now

Traffic Sign Retroreflectometer 220mm × 250mm × 80mm

Traffic Sign Retroreflectometer 220mm × 250mm × 80mm
Traffic Sign Retroreflectometer 220mm × 250mm × 80mm Traffic Sign Retroreflectometer 220mm × 250mm × 80mm

Large Image :  Traffic Sign Retroreflectometer 220mm × 250mm × 80mm

Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-JT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

Traffic Sign Retroreflectometer 220mm × 250mm × 80mm

Description
Built-in Battery Capacity: 3500mAh Testing Spot Diameter: 32mm
Color: Red Measurement Range: 0---1999.9
Observation Angle: 0.2° Angle Of Incidence: -4°
Charger: DC 8.4V Instrument Size: 220mm × 250mm × 80mm (L×H×W)
High Light:

220mm Sign Retroreflectometer

,

250mm Mobile Retroreflectometer

,

80mm Sign Retroreflectometer

Traffic Sign Retroreflectometer Patented optical system Manufacturer Accurate data UNS-JT Quick detection



Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.



Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.



Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Data storage space 8GB
Built-in battery capacity 3500mAh
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)

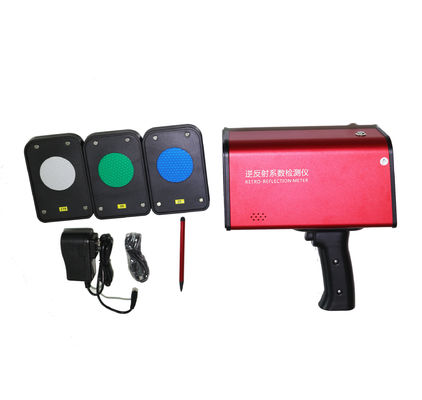

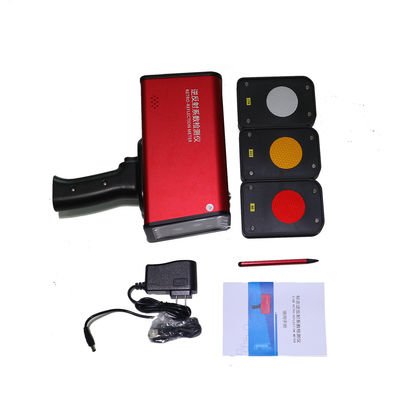

Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



Traffic Sign Retroreflectometer 220mm × 250mm × 80mm 0Traffic Sign Retroreflectometer 220mm × 250mm × 80mm 1





Our Service





Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.





Shipment



DHL , FEDEX , UPS , TNT , EMS :3-7 working days



Any other shipment way could be negoticated
