Product Details:
|
| Accuracy: | 0.02MM | Color: | Red |
|---|---|---|---|
| Warranty: | 1 Year | Dimension: | 20* 7* 8cm |
| N.W: | 1.1KG | G.W: | 2.0KG |
| Inner Box Size: | 28*22*14cm | Power: | Dry Battery |
| High Light: | UNS Road Marking Thickness Gauge,0.02MM Road Marking Thickness Gauge,0.02MM digital thickness tester |
||

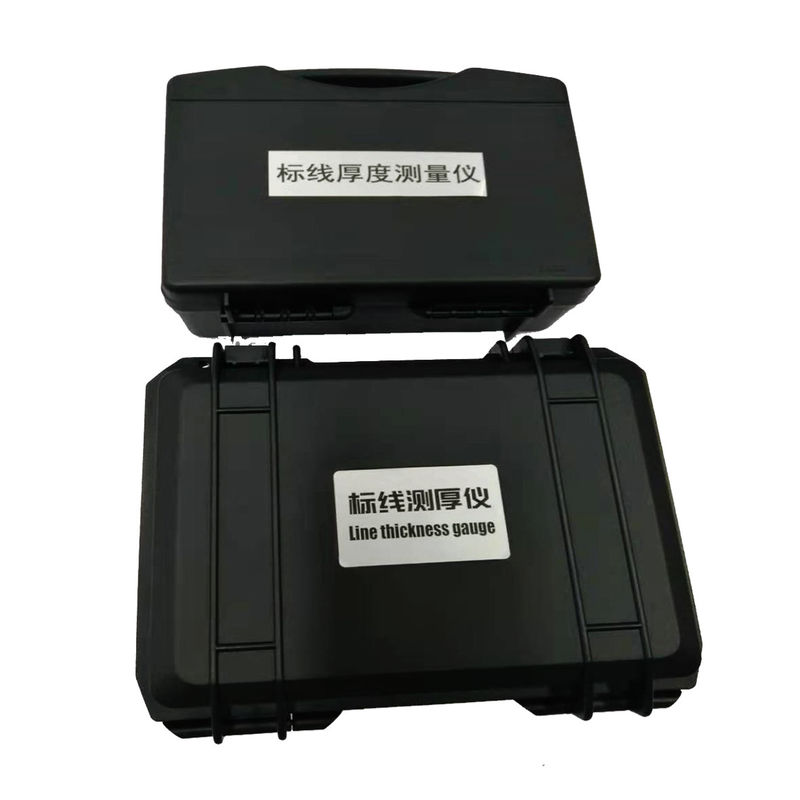

Manufacturer Accurate data Marking Thickness Gauge UNS10-2 One key detection
UNS10-2-type Marking Thickness Gauge measures the thickness of the paint and thermoplastic of pavement markings. The
instrument is a simple, but efficient metric for ensuring correct thickness of pavement stripes. This is a necessary means for the
production, quality supervision, engineering construction, supervision and other units to measure the thickness of road markings.
Main technical parameters
| Measurement range | 0 - 12.7 mm |
| Minimum Resolution | 0.01 mm |
| Indicating accuracy | 0.02 mm |
| Ambient temperature | 0℃ ~ +50℃ |
Packing list
| Serial number | Name Specification | Number |
| 01 | Marking Thickness Gauge | 1 |
| 02 | Dial indicator | 1 |
| 03 | Instruction manual | 1 |
| 04 | Certificate | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
