Product Details:
|
| Measurement Range: | 0---4000 | Angle Of Incidence: | 88.76° |
|---|---|---|---|
| Observation Angle: | 1.05° | Complementary Angle: | 1.24° |
| Light Source Color Temperature: | 2856±50K | Continuous Working Time Of Battery: | ＞72h |
| Instrument Size: | 700mm X 135mm X 115mm (L×H×W) | Ambient Humidity: | ＜98%, No Frost |
| Color: | Red | Inner Box: | With Luggager Bar And Brake Wheels |
| High Light: | 4000 Handheld Retroreflectometer,4000 retroreflectometer,2856 50K Handheld Retroreflectometer |
||

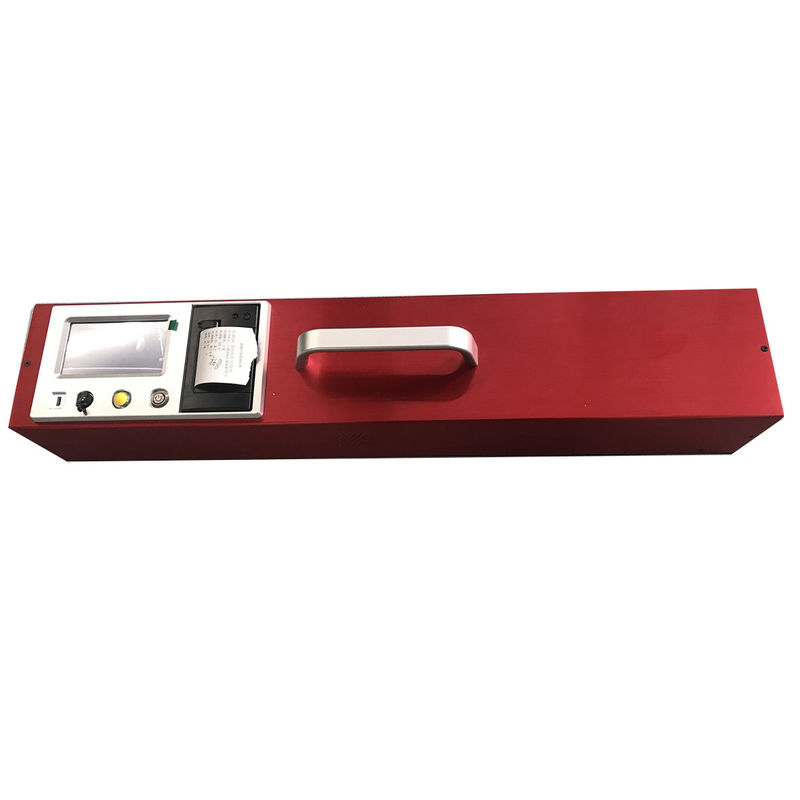

Big Measurement Range Handheld Retroreflectometer Quick Detection For Road with Brake Wheels and Luggage Bar
This instrument is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.
Designed with high precision and high stability structure, this marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.
Main technical parameters
| Measuring aperture area | 340mm x 95mm |
| Error of repeatability measurement | ≤3% |
| Angle of incidence | 88.76° |
| Observation angle | 1.05° |
| Complementary angle | 1.24° |
|
Instrument size |
700mm x 135mm x 115mm |
| Measurement range |
0-4000 |

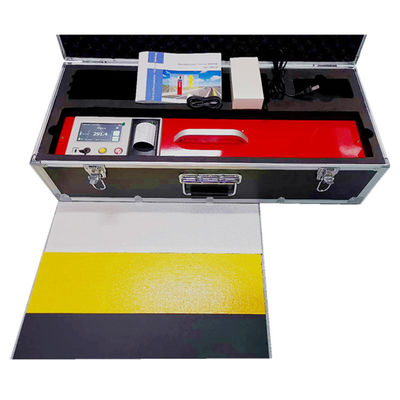

Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Stylus | 1 |
| 08 | Calibration Board | 1 |
Customized Logo:
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty:
1 Years warranty for all customers .
Spare Parts:
A proportion of spare parts will be shipped along with formal orders.
Shipment :
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
