LCD Touch Screen Retroreflectometer For Road Markings High Brightness

LCD Touch Screen Retroreflectometer For Road Markings High Brightness
LCD Touch Screen Retroreflectometer For Road Markings High Brightness LCD Touch Screen Retroreflectometer For Road Markings High Brightness

Large Image :  LCD Touch Screen Retroreflectometer For Road Markings High Brightness

Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: ISO9001
Model Number: STP-NRRM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 55*36*23CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

LCD Touch Screen Retroreflectometer For Road Markings High Brightness

Description
Normal Working Hours: ≥72h The Whole Machine Size: L310*W140*H230(mm)
Outer Packing Size: L550*W350*H165(mm) Ambient Temperature: -15℃~+60℃
Measurement Range: 0---4000 Light Source Color Temperature: 2856±50K
Ambient Humidity: <100%,No Frost Built-in Battery Capacity: 9600mAh The Lithium Battery
Retroreflective Coefficient: 3 Seconds Warranty: 1 Year
High Light:

Touch Screen Retroreflectometer For Road Markings

,

High Brightness Retroreflectometer For Road Markings

Rainy Night And High Brightness LCD Transparent Touch Screen Of Retroreflectometer For Road Markings



     Marking retroreflectometer is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. R6116-type instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.



  This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.



  The retroreflective marking measuring instrument is a special optical measuring device used to measure the reflective performance of road markings. The measured parameter is the retroreflective coefficient R '(or specific brightness) of the marking, and the unit is mcd • lx -1 • m -2. The instrument is easy to operate and reliable in value. It can be used in laboratories as well as on-site measurement. It is the first-choice instrument for measuring the retroreflective optical performance of highway markings for production, quality supervision, engineering construction, supervision, teaching and scientific research.



   Main technical parameters





Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000



Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



PICTURES

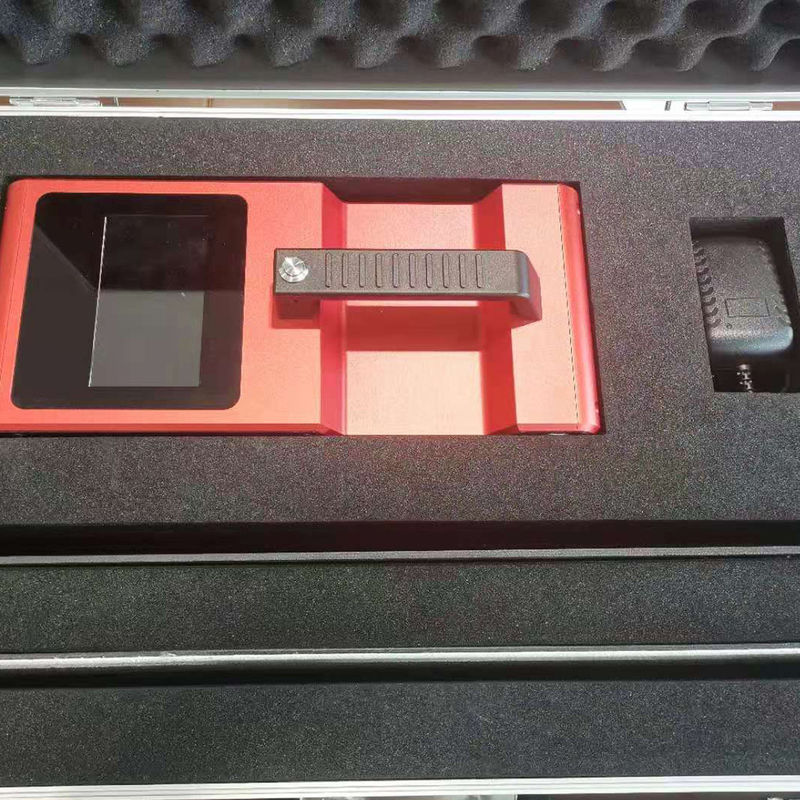

LCD Touch Screen Retroreflectometer For Road Markings High Brightness 0



LCD Touch Screen Retroreflectometer For Road Markings High Brightness 1

Our Service



Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.





Shipment



DHL , FEDEX , UPS , TNT , EMS :5-7 working days



Any other shipment way could be negoticated
