Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast

Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast
Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast

Large Image :  Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast

Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: ISO9001
Model Number: STP-NRRM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 55*36*23CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast

Description
Charging Voltage/current: DC12.6V/2A Power Supply Voltage: 12V DC
Measurement Line Color: 2.85Kg The Total Weight: 9Kg
The Whole Machine Size: L310*W140*H230(mm) Outer Packing Size: L550*W350*H165(mm)
Angle Of Incidence: 88.76° Observation Angle: 1.05°
Complementary Angle: 1.24° Measurement Range: 0---4000
High Light:

Voice Broadcast Retro Reflective Meter

,

Voice Broadcast Retroreflectometer For Road Markings

Supportting Measurement Data Real-time Voice Broadcast Of Retroreflectometer For Road Markings



  Product introduction



  The angle between the optical axis of the headlamp and the normal line (reference axis) of the road surface is called the incidence angle, which is set at 88.76° and the angle between the optical axis of the headlamp and the reflected light is called the observation angle, which is set at 1.05°. The light source of the optical system is directed to the marking line according to the incident angle. The size of measurement window is 450 x 65mm. The reflected light from the marking line is received by the V(λ) filter at the observation angle of 1.05°. After signal processing and calculation, the measured value is displayed. This value is the value of retroreflection coefficient RL.



  Main technical parameters





Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000



   Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



PICTURES

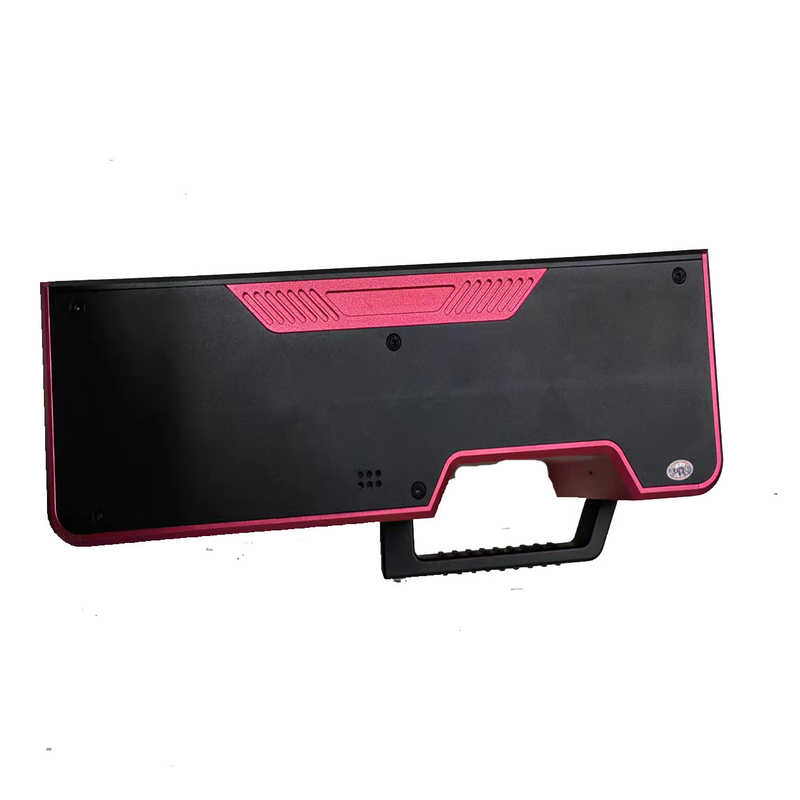

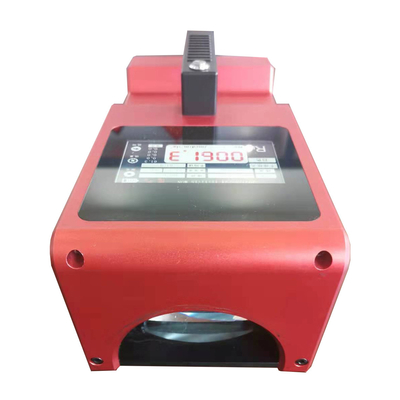

Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast 0

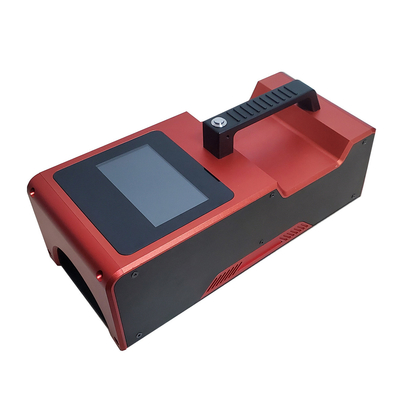

Retroreflectometer For Road Markings Supportting Real Time Voice Broadcast 1







Our Service



Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.





Shipment



DHL , FEDEX , UPS , TNT , EMS :5-7 working days



Any other shipment way could be negoticated
