Light Weight Retro Reflective Meter Rapid Measurement

Light Weight Retro Reflective Meter Rapid Measurement
Light Weight Retro Reflective Meter Rapid Measurement Light Weight Retro Reflective Meter Rapid Measurement Light Weight Retro Reflective Meter Rapid Measurement

Large Image :  Light Weight Retro Reflective Meter Rapid Measurement

Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: ISO9001
Model Number: STP-NRRM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 55*36*23CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

Light Weight Retro Reflective Meter Rapid Measurement

Description
Normal Working Hours: ≥72h Error Of Repeatability Measurement: <5%
Warranty: 1 Year OEM: Yes
Charging Voltage/current: DC12.6V/2A Power Supply Voltage: 12V DC
Measurement Line Color: 2.85Kg The Total Weight: 9Kg
The Whole Machine Size: L310*W140*H230(mm) Outer Packing Size: L550*W350*H165(mm)
High Light:

Light Weight Retro Reflective Meter

,

Rapid Measurement Retro Reflective Meter

,

High Precision Retroreflectometer

Small Size/light Weight And Rapid Measurement Of Retroreflectometer For Road Markings



  Product introduction

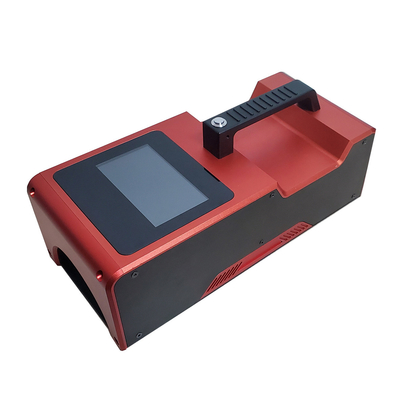

  Designed with high precision and high stability structure, STP-NRRM marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.



   The angle between the optical axis of the headlamp and the normal line (reference axis) of the road surface is called the incidence angle, which is set at 88.76° and the angle between the optical axis of the headlamp and the reflected light is called the observation angle, which is set at 1.05°. The light source of the optical system is directed to the marking line according to the incident angle. The size of measurement window is 450 x 65mm. The reflected light from the marking line is received by the V(λ) filter at the observation angle of 1.05°. After signal processing and calculation, the measured value is displayed. This value is the value of retroreflection coefficient RL.



  Main technical parameters





Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000



   Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



PICTURES

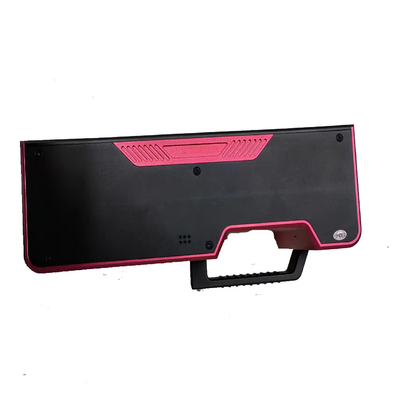

Light Weight Retro Reflective Meter Rapid Measurement 0

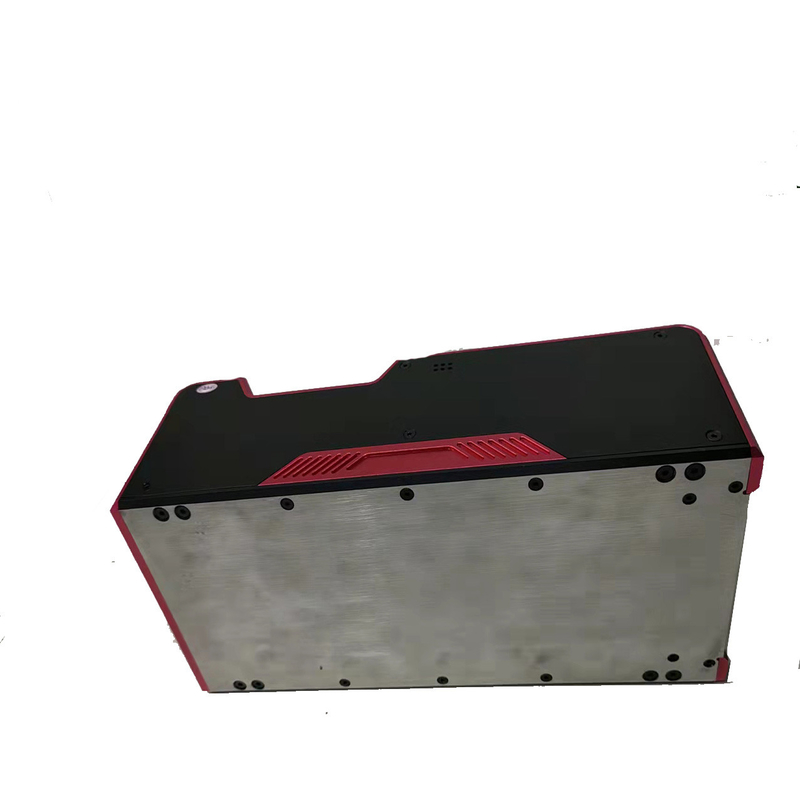

Light Weight Retro Reflective Meter Rapid Measurement 1
