Product Details:
|
| Warranty: | 1 Year | OEM: | Yes |
|---|---|---|---|
| Line Color: | White, Yellow, Red, Green Or Blue | Measuring Aperture Area: | 450mm X 65mm |
| Angle Of Incidence: | 88.76° | Complementary Angle: | 1.24° |
| Measurement Items:: | Retroreflective Coefficient Mcd.m-2.lx-1 | Measurement Range: | 0---4000 |
| The Whole Machine Size: | L310*W140*H230（mm） | Outer Packing Size: | L550*W350*H165（mm） |
| High Light: | Road Markings Retroreflector,Rapid Measurement Road Markings Retroreflector,Red Road Markings Retroreflector |
||
Simple Calibration Procedure And Rapid Measurement Of Retroreflectometer For Road Markings
Product introduction
STP-NRRM marking retroreflectometer is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. STP-NRRM instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.
The geometric condition of STP-NRRM rainy night road marking retroreflectometer is to simulate the brightness that the driver observes in the cab reflected from the marking made of retroreflective material on the road by the headlamp when the vehicle is driven on the road at night.
Main technical parameters
| Measuring aperture area | 450mm x65mm |
| Error of repeatability measurement | ≤5% |
| Angle of incidence | 88.76° |
| Observation angle | 1.05° |
| Complementary angle | 1.24° |
| Measurement range | 0---4000 |
Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |

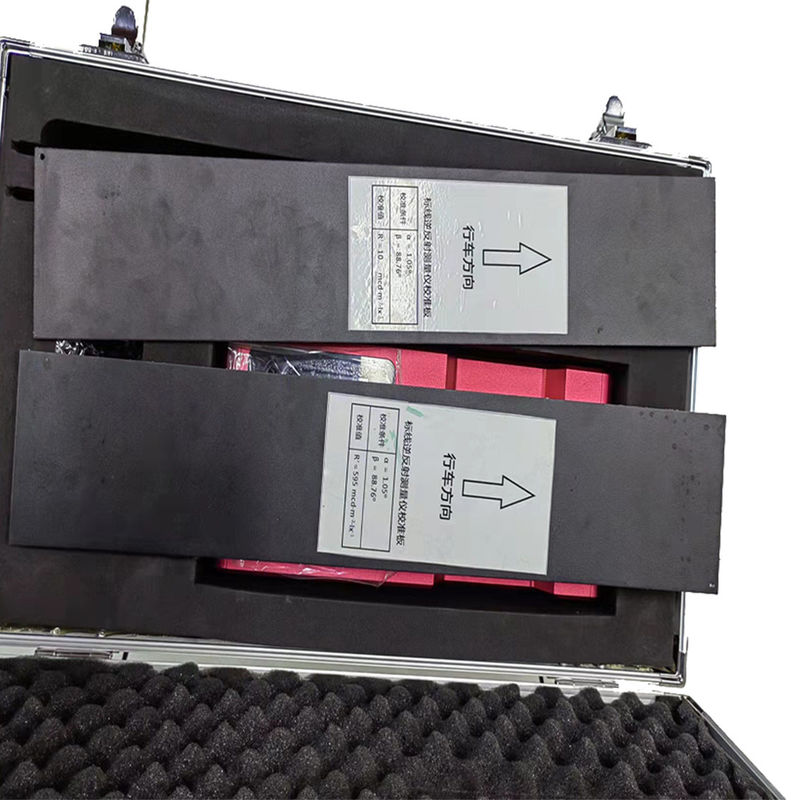

| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
PICTURES
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :5-7 working days
Any other shipment way could be negoticated
Contact Person: BELLA LIU
Tel: 86 -15222916980
