Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: ISO9001
Model Number: STP-NRRM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 55*36*23CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

Rapid Measurement Retroreflectometer For Road Markings Multi Detection Modes

Description
Line Color: White, Yellow, Red, Green Or Blue Detection Modes: Dry Mode, Wet Mode And Rainy Night Mode
Warranty: 1 Year OEM: Yes
Test Data: More Than 99,999 SD: 32G
Measurement Items:: Retroreflective Coefficient Mcd.m-2.lx-1 Measurement Range: 0---4000
The Whole Machine Size: L310*W140*H230(mm) Outer Packing Size: L550*W350*H165(mm)
High Light:

Rapid Measurement Retroreflector

,

32G SD Retroreflectometer

,

Retroreflectometer Rapid Measurement

Rapid Measurement Road Markings Retroreflector With multi detection modes



  Product introduction



   STP-NRRM marking retroreflectometer  is to measure the in-night brightness of road marking made of retroreflective material simulating under illumination from the headlights of vehicles driving on road, i.e, the in-night brightness observed by the driver in vehicle.



  Main technical parameters





Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000



   Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1

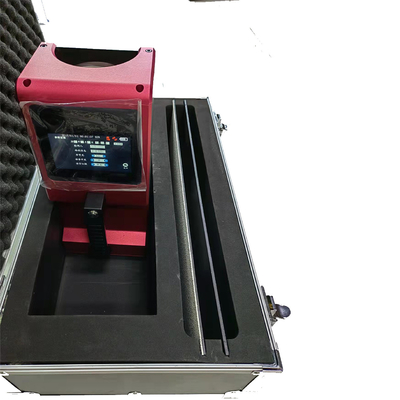

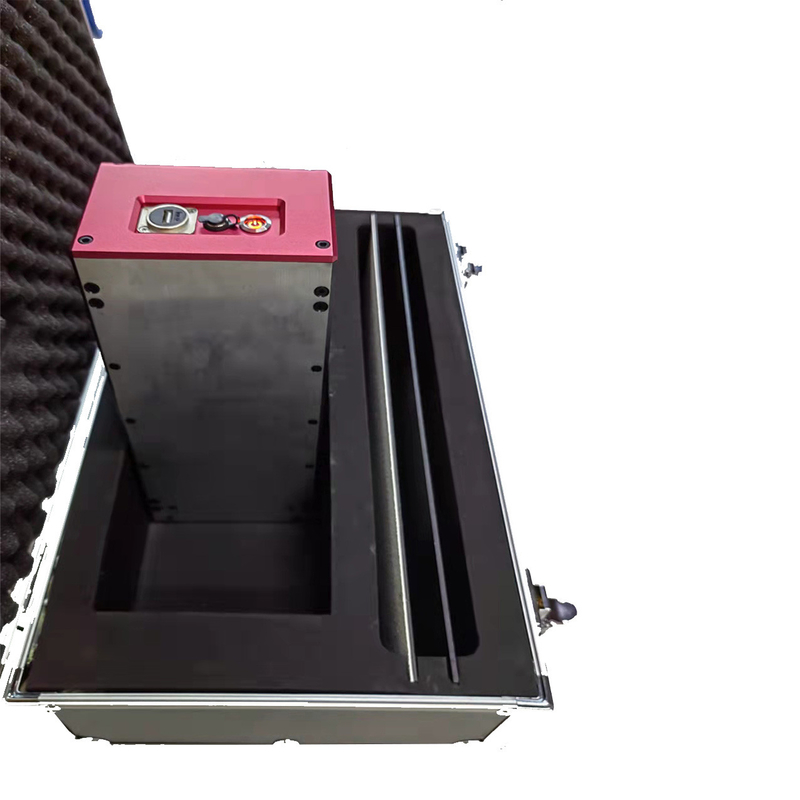

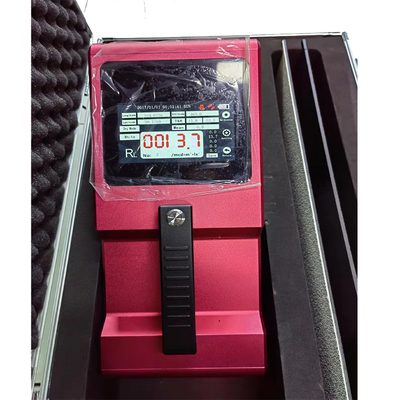

PICTURES



Rapid Measurement Retroreflectometer For Road Markings Multi Detection Modes 0

Rapid Measurement Retroreflectometer For Road Markings Multi Detection Modes 1



Our Service



Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.



Shipment



DHL , FEDEX , UPS , TNT , EMS :5-7 working days



Any other shipment way could be negoticated
