Road Markings Retroreflector Meter With Line Color Measurement

Road Markings Retroreflector Meter With Line Color Measurement
Road Markings Retroreflector Meter With Line Color Measurement Road Markings Retroreflector Meter With Line Color Measurement Road Markings Retroreflector Meter With Line Color Measurement

Large Image :  Road Markings Retroreflector Meter With Line Color Measurement

Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: ISO9001
Model Number: STP-NRRM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotionable
Packaging Details: inner box and master carton , 1pc per carton . carton size : 55*36*23CM
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

Road Markings Retroreflector Meter With Line Color Measurement

Description
Detection Modes: Dry Mode, Wet Mode And Rainy Night Mode Observation Angle: 1.05°
Angle Of Incidence: 88.76° Line Color: White, Yellow, Red, Green Or Blue
The Whole Machine Net Weight: 2.85Kg The Total Weight: 9Kg
Charging Voltage/current: DC12.6V/2A Multiple Measurements: Yes
Test Data: More Than 99,999 SD: 32G
High Light:

Line Color Measurement Retroreflector Meter

,

Rainy Night Mode Retroreflector Meter

,

Line Color Measurement Retroreflectometer

Simple Calibration Procedure Road Markings Retroreflector With The Line Color Measurement



  Product introduction



   STP-NRRM marking retroreflectometer  is to measure the in-night brightness of road marking made of retroreflective material simulating under illumination from the headlights of vehicles driving on road, i.e, the in-night brightness observed by the driver in vehicle.

   The angle between the optical axis of the headlamp and the normal line (reference axis) of the road surface is called the incidence angle, which is set at 88.76° and the angle between the optical axis of the headlamp and the reflected light is called the observation angle, which is set at 1.05°.



  Main technical parameters





Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000



   Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



PICTURES

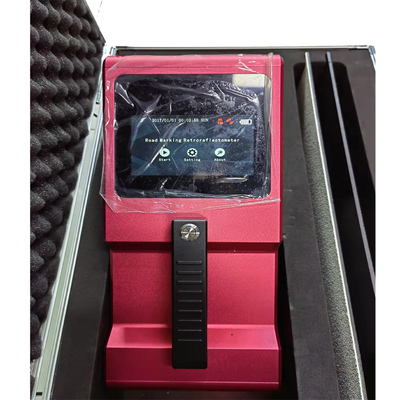

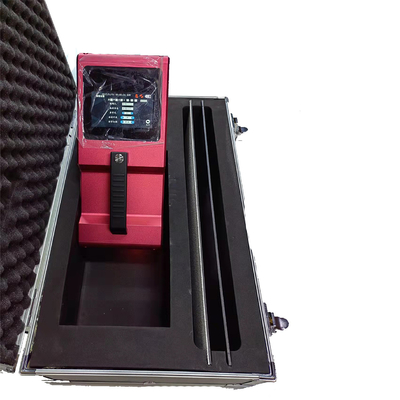

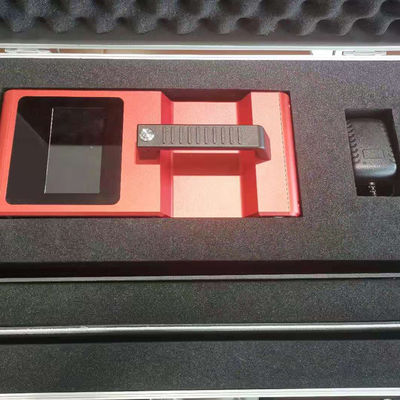

Road Markings Retroreflector Meter With Line Color Measurement 0

Road Markings Retroreflector Meter With Line Color Measurement 1



Our Service



Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.



Shipment



DHL , FEDEX , UPS , TNT , EMS :5-7 working days



Any other shipment way could be negoticated
