Product Details:
|
Warranty: | 1 Year | Language: | English |
---|---|---|---|
Measurement Color: | 0---1999.9 | Error Of Reproducibility Measurement: | ≤3% |
Error Of Repeatability Measurement: | ≤2% | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
Built-in Battery Capacity: | 3500mAh | Charger: | DC 8.4V |
Angle Of Incidence: | -4° | Observation Angle: | 0.2° |
Measurement Items: | Retroreflective Coefficient Cd .lx-1 .m-2 | Light Source Color Temperature: | 2856±50K (Standard Illuminant A) |
High Light: | 4.3 Inch Road Marking Sign Retroreflectometer,Touch Screen Traffic Sign Retroreflectometer,4.3 Inch Screen Portable Retroreflectometer |

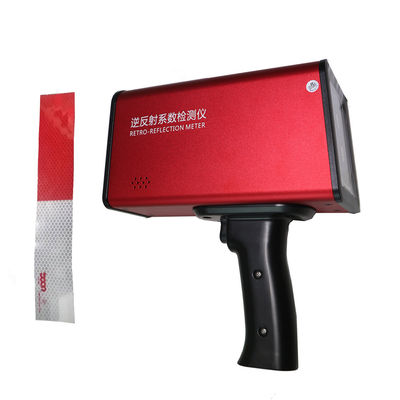

Sign Retroreflectometer STP-TSR With The 4.3-inch High Brightness LCD Capacitive Touch Screen Displays The Measured Data
Standards are instructions telling national road authorities what measurements need to be enforced and what
limits to adhere to in order to improve driving safety.
STP-TSR is known for its highly reliable and robust range of handheld retroreflectomers (LTL, RetroSign) used
throughout the world for measuring retroreflection from road markings and road signs with the main purpose of
improving driving safety.
Main technical parameters
Measurement items | retroreflective coefficient cd .lx .m2 |
Measurement range | 0---1999.9 |
Observation angle | 0.2° |
Angle of incidence | -4° |
Testing spot diameter | 32mm |
Charger | DC 8.4V |
Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
Serial number | Name Specification | Number |
01 | Traffic Sign Retro-Reflection Meter | 1 |
02 | Charger | 1 |
03 | USB Date Line | 1 |
04 | Instructions | 1 |
05 | Certificate | 1 |
06 | Warranty Card | 1 |
07 | Calibration Board | 1 |
08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS : 3-7 working days
Any other shipment way could be negoticated
Contact Person: BELLA LIU
Tel: 86 -15222916980
