Product Details:
|
| Measurement Color, Red, Green Or Blue: | White, Yellow, Red, Green Or Blue | Ambient Temperature: | -5℃~+50℃ |
|---|---|---|---|
| Ambient Humidity: | ＜98%, No Frost | Language: | English |
| SD Card: | 8G | Weight: | 1.7kg |
| Warranty: | 1 Year | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| Charger: | DC 8.4V | Angle Of Incidence: | -4° |
| Observation Angle: | 0.2° | Test Data: | More Than 99,999 |
| High Light: | Real Time Display Sign Retroreflectometer,CCC Approved Sign Retroreflectometer,On Site Road Sign Retroreflectometer |
||
Sign Retroreflectometer STP-TSR With Real-time Display Of On-site Temperature And Humidity
Having standards enforced will increase road safety, especially when driving during night time and during poor
conditions like rain and fog. International studies show that relatively more accidents and fatalities happen during
night time driving compared to daytime driving.
STP-TSR is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs
and safety garments.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Testing spot diameter | 32mm |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |

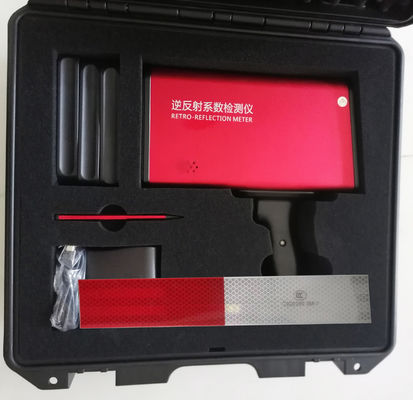

Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
