Product Details:
|
| Color: | Red | Measurement Color, Red, Green Or Blue: | White, Yellow, Red, Green Or Blue |
|---|---|---|---|
| Weight: | 1.7kg | Warranty: | 1 Year |
| Instrument Size: | 220mm × 250mm × 80mm (L×H×W) | Language: | English |
| Error Of Repeatability Measurement: | ≤2% | Error Of Reproducibility Measurement: | ≤3% |
| Built-in Battery Capacity: | 3500mAh | Ambient Temperature: | -5℃~+50℃ |
| Ambient Humidity: | ＜98%, No Frost | SD Card: | 8G |
| High Light: | Precise Geolocation Sign Retroreflectometer,Sign Retroreflectometer 3500mAh,High Resolution Images Sign Retroreflectometer |
||

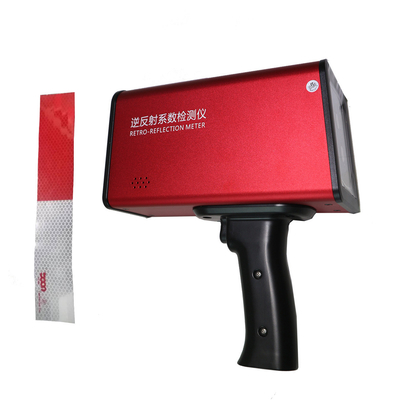

Sign Retroreflectometer STP-TSR With precise geolocation and high-resolution images
STP-TSR is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs
and safety garments.
The instrument uses point aperture geometry which enables the user to determine if direction sensitive
microprismatic sheeting is correctly positioned on a sign.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Testing spot diameter | 32mm |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |

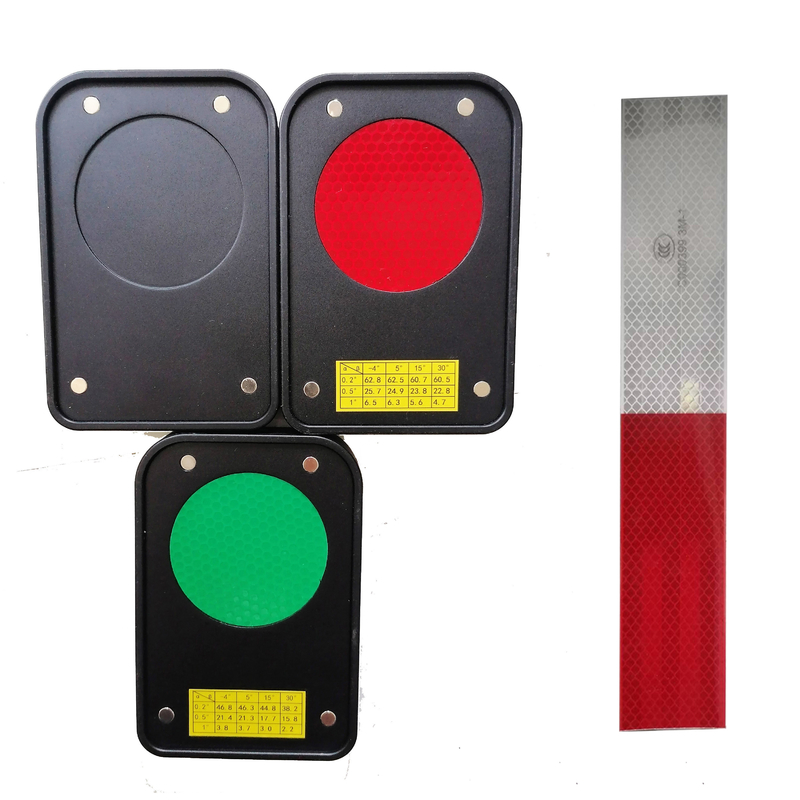

| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS : 3-7 working days
Any other shipment way could be negoticated
