Product Details:
|
| Built-in Battery Capacity: | 3500mAh | Ambient Temperature: | -5℃~+50℃ |
|---|---|---|---|
| Ambient Humidity: | ＜98%, No Frost | Test Data: | More Than 99,999 |
| Measurement Color, Red, Green Or Blue: | White, Yellow, Red, Green Or Blue | Warranty: | 1 Year |
| Language: | English | Observation Angle: | 0.2° |
| Angle Of Incidence: | -4° | SD Card: | 8G |
| Weight: | 1.7kg | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| High Light: | Airport Authorities Sign Retroreflectometer,Rapid Measurement Sign Retroreflectometer,Road Authorities Sign Retroreflectometer |
||

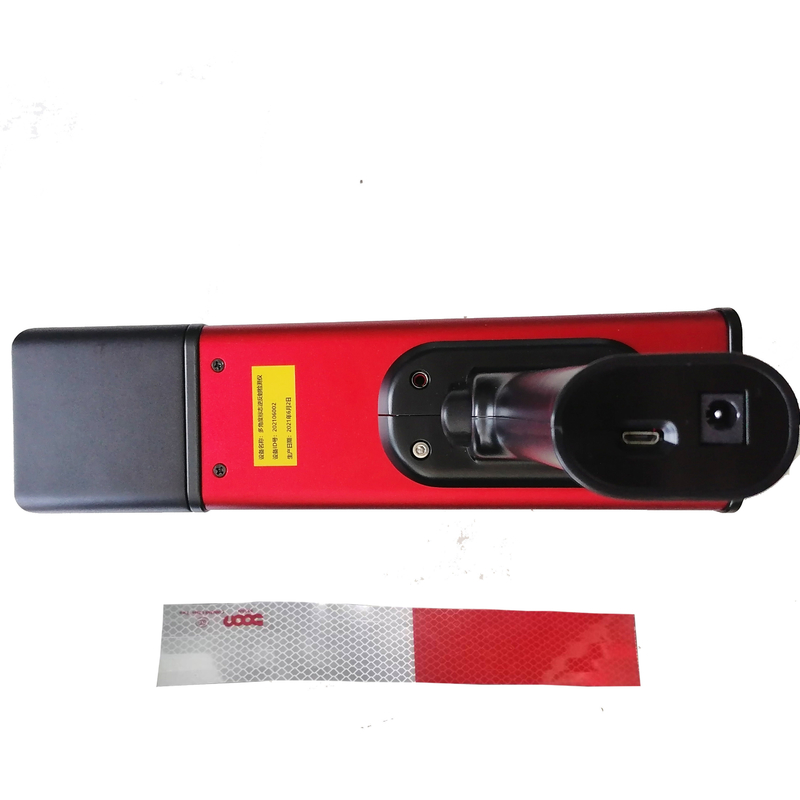

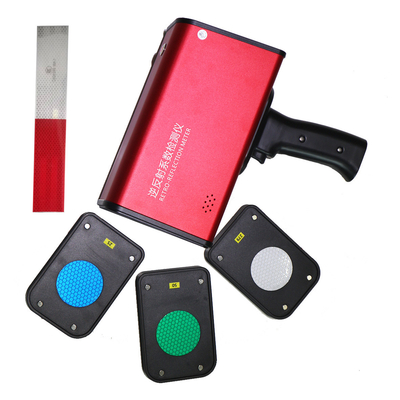

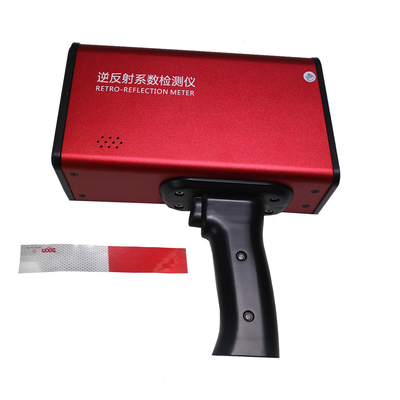

Sign Retroreflectometer STP-TSR Used By Road And Airport Authorities With Rapid Measurement
STP-TSR is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs
and safety garments.
STP-TSR can in seconds measure the retroreflection and provide a non disputable result and proof whether a
road marking or a road sign meet or fails the standard guidelines.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Testing spot diameter | 32mm |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS : 3-7 working days
Any other shipment way could be negoticated
Contact Person: BELLA LIU
Tel: 86 -15222916980
