Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: CCC
Model Number: STP-TSR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

High Precision Sign Retroreflectometer STP-TSR High Stability Structure

Description
Language: English Color: Red
Measurement Items: Retroreflective Coefficient Cd .lx-1 .m-2 Testing Spot Diameter: 32mm
Built-in Battery Capacity: 3500mAh Observation Angle: 0.2°
Angle Of Incidence: -4° Ambient Temperature: -5℃~+50℃
SD Card: 8G Weight: 1.7kg
Measurement Color, Red, Green Or Blue: White, Yellow, Red, Green Or Blue Warranty: 1 Year
High Light:

32mm Dia Sign Retroreflectometer

,

Sign Retroreflectometer High Stability

,

Sign Retroreflectometer High Precision

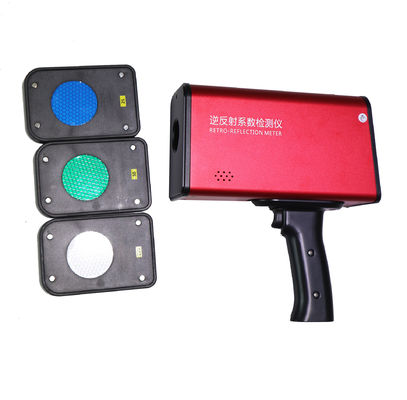

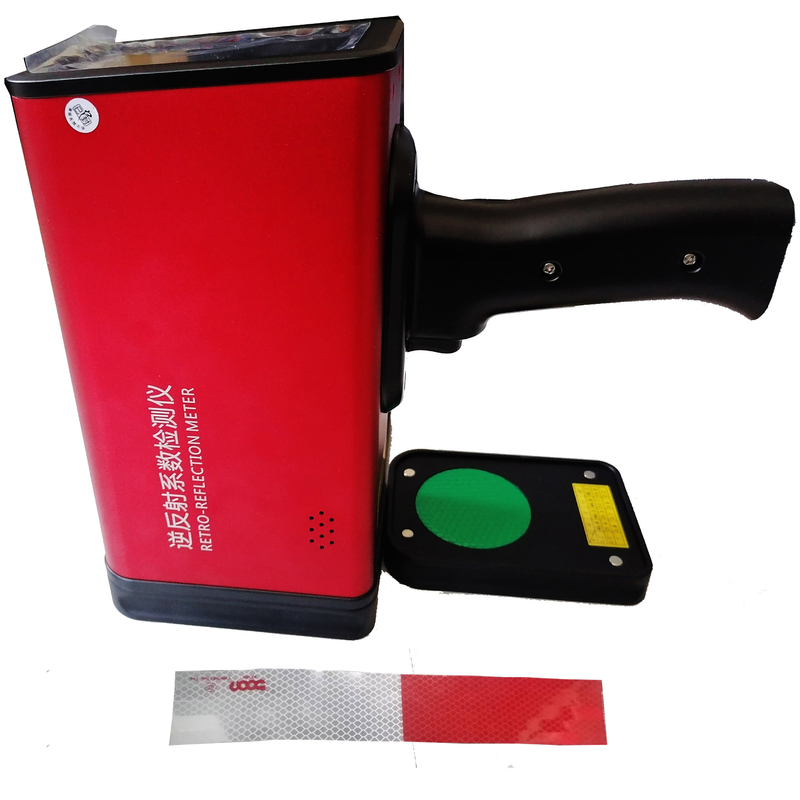

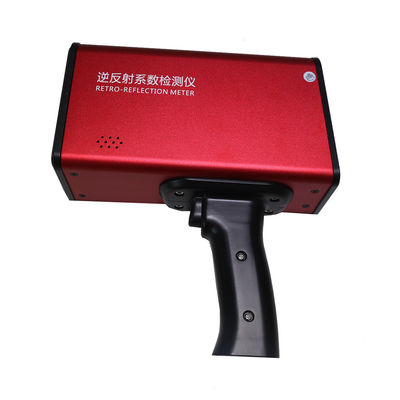

Sign Retroreflectometer STP-TSR  With High Precision And High Stability Structure





  STP-TSR uses point aperture geometry which enables the user to determine if direction sensitive microprismatic



sheeting is correctly positioned on a sign.



   STP-TSR  is built in accordance with existing standards to allow for retroreflection measurement of various



colors and all type of retroreflective materials including florescence types.





Main technical parameters

Measurement items retroreflective coefficient cd .lx .m2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Testing spot diameter 32mm
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)





Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



High Precision Sign Retroreflectometer STP-TSR High Stability Structure 0



High Precision Sign Retroreflectometer STP-TSR High Stability Structure 1





Our Service





Customized Logo



Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty



1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.



Shipment



DHL, FEDEX, UPS, TNT, EMS : 3-7 working days



Any other shipment way could be negoticated
