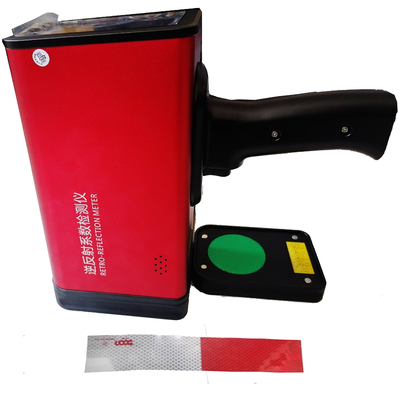

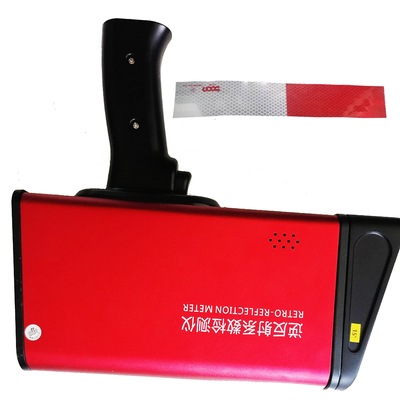

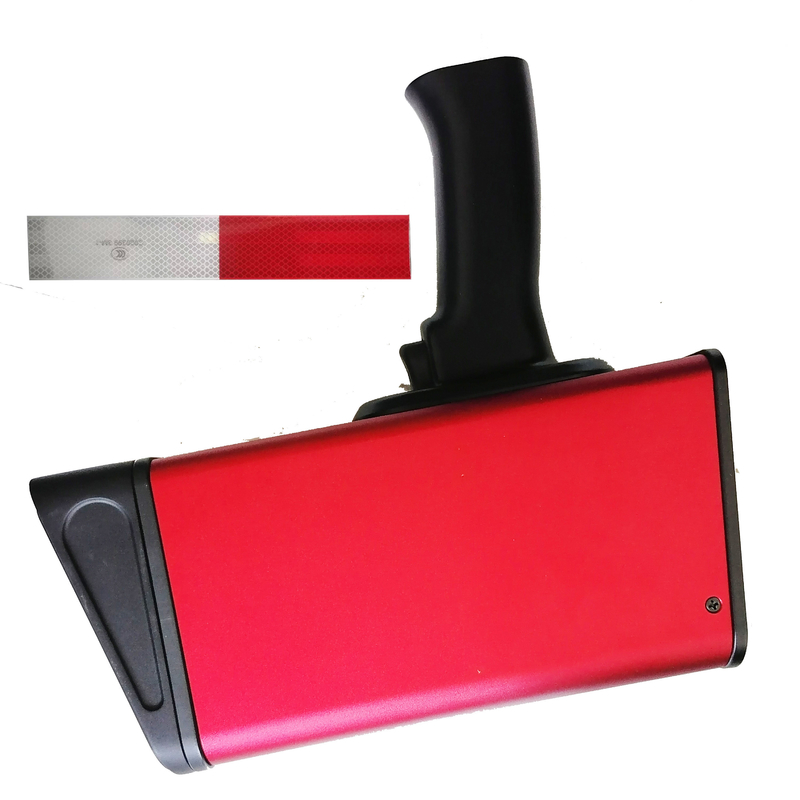

Sign Retroreflectometer STP-TSR With High Standard MCU Master Module

Certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
I'm Online Chat Now

Sign Retroreflectometer STP-TSR With High Standard MCU Master Module

Sign Retroreflectometer STP-TSR With High Standard MCU Master Module
Sign Retroreflectometer STP-TSR With High Standard MCU Master Module Sign Retroreflectometer STP-TSR With High Standard MCU Master Module Sign Retroreflectometer STP-TSR With High Standard MCU Master Module

Large Image :  Sign Retroreflectometer STP-TSR With High Standard MCU Master Module

Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: CCC
Model Number: STP-TSR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

Sign Retroreflectometer STP-TSR With High Standard MCU Master Module

Description
Measurement Color, Red, Green Or Blue: White, Yellow, Red, Green Or Blue Outer Packing: Master Carton
Language: English Color: Red
Warranty: 1 Year Measurement Items: Retroreflective Coefficient Cd .lx-1 .m-2
Testing Spot Diameter: 32mm Charger: DC 8.4V
Observation Angle: 0.2° Angle Of Incidence: -4°
Ambient Temperature: -5℃~+50℃ SD Card: 8G
High Light:

CCC Sign Retroreflectometer

,

High Standard Sign Retroreflectometer

,

Intelligent Sign Retroreflectometer

Sign Retroreflectometer STP-TSR  With  High-standard MCU Master Module



   Intelligent electronics work together with Swiss Made optics to monitor the environment and adjust to stray light.



The result is a new benchmark of accuracy and robustness under any conditions in the field.



   STP-TSR  is built in accordance with existing standards to allow for retroreflection measurement of various



colors and all type of retroreflective materials including florescence types.





Main technical parameters

Measurement items retroreflective coefficient cd .lx .m2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Testing spot diameter 32mm
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)





Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



Sign Retroreflectometer STP-TSR With High Standard MCU Master Module 0



Sign Retroreflectometer STP-TSR With High Standard MCU Master Module 1











Our Service





Customized Logo



Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty



1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.



Shipment



DHL, FEDEX, UPS, TNT, EMS : 3-7 working days



Any other shipment way could be negoticated
