DC 8.4V Charger Retroreflectometer With Embedded Program Control Software

DC 8.4V Charger Retroreflectometer With Embedded Program Control Software
DC 8.4V Charger Retroreflectometer With Embedded Program Control Software DC 8.4V Charger Retroreflectometer With Embedded Program Control Software DC 8.4V Charger Retroreflectometer With Embedded Program Control Software

Large Image :  DC 8.4V Charger Retroreflectometer With Embedded Program Control Software

Product Details:
Place of Origin: CHINA
Brand Name: STP
Certification: CCC
Model Number: STP-TSR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

DC 8.4V Charger Retroreflectometer With Embedded Program Control Software

Description
Outer Packing: Master Carton Error Of Reproducibility Measurement: ≤3%
Error Of Repeatability Measurement: ≤2% Measurement Color, Red, Green Or Blue: White, Yellow, Red, Green Or Blue
Ambient Temperature: -5℃~+50℃ SD Card: 8G
Language: English Color: Red
Warranty: 1 Year Measurement Items: Retroreflective Coefficient Cd .lx-1 .m-2
Testing Spot Diameter: 32mm Charger: DC 8.4V
High Light:

Embedded Program Sign Retroreflectometer

,

DC 8.4V Charger Retroreflectometer

,

Embedded Program Control Retroreflectometer

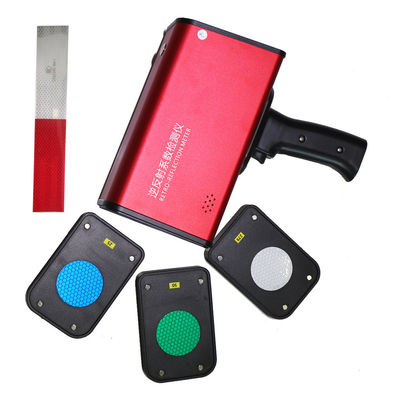

Sign Retroreflectometer STP-TSR With Embedded Program Control Software



   Intelligent electronics work together with Swiss Made optics to monitor the environment and adjust to stray light.



The result is a new benchmark of accuracy and robustness under any conditions in the field.



   STP-TSR  is a necessary instrument for the production, quality supervision, engineering construction,



supervision and other units to measure the retroreflection performance of reflective sign.





Main technical parameters

Measurement items retroreflective coefficient cd .lx .m2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Testing spot diameter 32mm
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)





Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1



DC 8.4V Charger Retroreflectometer With Embedded Program Control Software 0



DC 8.4V Charger Retroreflectometer With Embedded Program Control Software 1
