Product Details:
|
| Light Source Color Temperature: | 2856±50K (Standard Illuminant A) | Testing Spot Diameter: | 32mm |
|---|---|---|---|
| Weight: | 1.7kg | Measurement Items: | Retroreflective Coefficient Cd .lx-1 .m-2 |
| Color: | Red | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| Error Of Repeatability Measurement: | ≤2% | Continuous Working Time Of Battery: | ＞8h |
| High Light: | High Precision Highway Sign Retroreflectometer,High Accurate Roadside Sign Retroreflectometer |
||

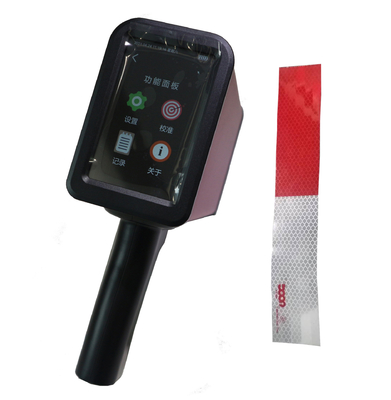

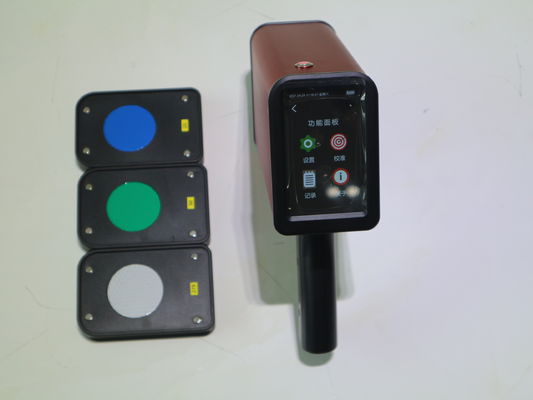

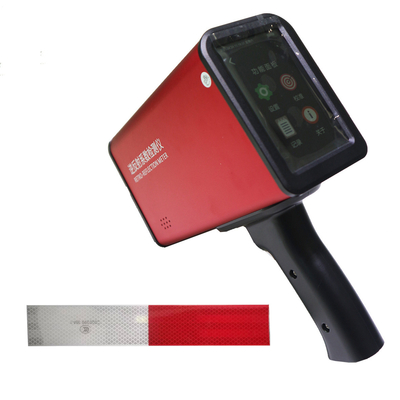

The Sign Retroreflectometer is a professional tool for measuring retroreflective coefficient Cd .lx-1 .m-2. It is equipped with a 0.2° observation angle and a light source color temperature of 2856±50K (Standard Illuminant A). The measurement range is wide enough for various applications, and it is designed with a built-in battery capacity of 3500mAh that provides enough continuous working time for measurement. In terms of accuracy, it has an error of reproducibility measurement of ≤3%, ensuring the accuracy of the measurement results. Moreover, it features a convenient and simple operation interface, allowing technicians to quickly and accurately complete the measurement task.
| Parameter | Value |
|---|---|
| Angle of incidence | 0.2° |
| Ambient humidity | ＜98%, No Frost |
| Weight | 1.7kg |
| Error of repeatability measurement | ≤2% |
| Error of reproducibility measurement | ≤3% |
| Continuous working time of battery | ＞8h |
| Testing spot diameter | 32mm |
| Language | English |
| Measurement items | Retroreflective Coefficient Cd .lx-1 .m-2 |
The Retro Reflective Meter , Model Number STP-TSR, is the perfect solution for accurate and reliable retroreflective measurements. Certified by CCC, the meter is a must-have for customers looking for a reliable and precise product. With a Minimum Order Quantity of 1, the product is packaged in an inner box and master carton, with 1pc per carton. The Delivery Time is 5-8 work days and can be paid for using the T/T Payment Terms. Despite its small size, the Instrument size is able to provide customers with a Supply Ability of 1000 pieces. Additionally, the Error of repeatability measurement is ≤2%, and the Light source color temperature is 2856±50K (Standard Illuminant A).
The Retro Reflective Meter is ideal for measuring retroreflective coefficients Cd .lx-1 .m-2, with a Measurement range of 0---1999.9. It also offers an Observation angle of 0.2°, allowing users to measure a variety of different materials. As the Retro Reflective Meter is highly accurate and reliable, it is the ideal choice for customers looking for a precision instrument.
Retro Reflective Meter STP-TSR has been certified by CCC and is manufactured in CHINA. It has a minimum order quantity of 1 and is packaged in an inner box and a master carton, 1pc per carton. Delivery time is 5-8 work days and payment terms are T/T. The weight of Retro Reflective Meter STP-TSR is 1.7kg. It has a DC 8.4V charger and its light source color temperature is 2856±50K (Standard Illuminant A). It has a maximum ambient humidity of ＜98%, No Frost and a continuous working time of battery of ＞8h. It has large data storage space and provides angle of incidence, as well as measurement items.
We provide technical support and service for the Sign Retroreflectometer. Our highly trained team of experts are available to provide technical assistance and support for the product, whether it be regarding installation and setup or troubleshooting.
We offer a full range of services, including installation, maintenance, repair, and servicing. We also provide technical support and training to ensure that our customers are able to use the product to its fullest potential.
We understand that the Sign Retroreflectometer is a complex instrument, so our team is always available to help with any questions or concerns. We are dedicated to providing the best customer service possible and strive to ensure that our customers are satisfied with their purchase.
The Sign Retroreflectometer is packaged in a single corrugated cardboard box and shipped in a double-wall corrugated cardboard box. The outside of the box is labeled with the product name, the manufacturer's name and address, and any relevant warnings or instructions. Inside the box, the device is securely held in a foam insert, with the accessories and power adapter in separate compartments.
