Product Details:
|
| Error Of Repeatability Measurement: | ≤2% | Measurement Range: | 0---1999.9 |
|---|---|---|---|
| Measurement Items: | Retroreflective Coefficient Cd .lx-1 .m-2 | Angle Of Incidence: | -4° |
| Ambient Temperature: | -5℃~+50℃ | Ambient Humidity: | ＜98%, No Frost |
| Light Source Color Temperature: | 2856±50K (Standard Illuminant A) | Observation Angle: | 0.2° |
| High Light: | High Accuracy Traffic Sign Retroreflectometer,High Precision Portable Sign Retroreflectometer |
||

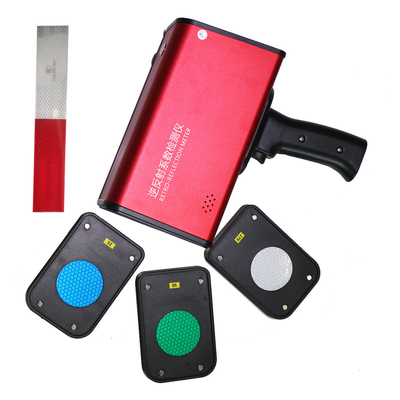

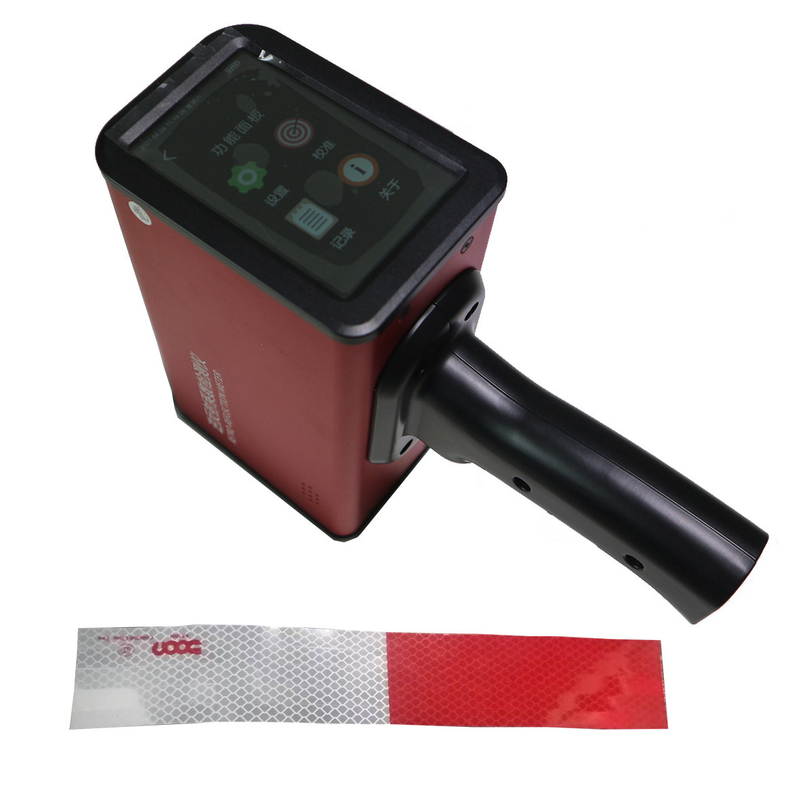

Sign Retroreflectometer is a reliable and accurate product designed for measuring the reflective performance of signs and marking. It is equipped with a high-precision optical system, providing accurate and stable measurement results and ensuring reliable data. The product is compact and lightweight with a weight of 1.7kg, making it easy to carry and operate. It has a wide range of ambient temperature from -5℃ to +50℃, making it suitable for different working environments. The angle of incidence is -4° and the error of repeatability measurement is ≤2%, ensuring a high accuracy and precision. Moreover, the product has a continuous working time of battery and allows high ambient humidity, which makes it highly efficient and stable. Last but not least, it comes with a 1-year warranty, guaranteeing customers a worry-free buying experience.
| Parameter | Value |
|---|---|
| Error of repeatability measurement | ≤2% |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Continuous working time of battery | ＞8h |
| Charger | DC 8.4V |
| Color | Red |
| Testing spot diameter | 32mm |
| Error of reproducibility measurement | ≤3% |
| Built-in battery capacity | 3500mAh |
| Ambient temperature | -5℃~+50℃ |
| Light source color temperature | N/A |
The Retro Reflective Meter (Model Number: STP-TSR) is an advanced device designed for measuring the retroreflective coefficient of any object. It comes with a built-in battery capacity of 3500mAh, and a testing spot diameter of 32mm, along with an observation angle of 0.2°. The device is designed with a data storage space to store over a thousand measurements, and with an error of repeatability measurement of less than 0.5%. It is lightweight and has a data interface that allows for easy connection to a laptop or computer. The device is certified by CCC, and it is capable of operating in a wide range of temperatures. The device comes with a minimum order quantity of 1, and it is packed in an inner box and master carton, with 1pc per carton. Delivery is within 5-8 work days, and the payment terms are T/T, with a supply ability of 1000. The language of the device is English.
We provide 24/7 technical support and service for our Sign Retroreflectometer product. Our technical team is comprised of experienced professionals who are knowledgeable and passionate about helping our customers get the most out of their Sign Retroreflectometer.
We are available to answer questions, provide troubleshooting and maintenance advice, and help customers with any technical issues that may arise. Our technical support team also offers assistance with installation and setup.
If you have any questions or need assistance with your Sign Retroreflectometer, please do not hesitate to contact us. Our technical support team is here to help you!
The Sign Retroreflectometer is packaged in a cardboard box. It will be shipped within 7-10 days of receiving payment via tracked and insured international courier service.
