|Calibration:||3 Panels||Continuous Working Time Of Battery:||＞72h|
|Data Storage Space:||8GB||Ambient Humidity:||＜98%, No Frost|
|Instrument Size:||700mm X 135mm X 115mm (L×H×W)||Measurement Range:||0---4000|
Printable retroreflector meter,
Touch Screen Retroreflectometer
Printable Road Markings Retroreflectometer For Touch Screen,Voice

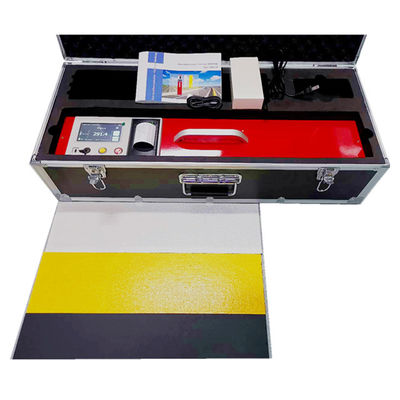

UNS-BX1-type marking retroreflectometer is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. UNS-BX1-type instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.
UNS-BX1-type marking retroreflectometer is a kind of professional measuring instrument mainly developed by Anhui Union Safe Technology Co., Ltd. This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.
Designed with high precision and high stability structure, UNS-BX1-type marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.
Main technical parameters
|Error of repeatability measurement||≤3%|
|Measuring aperture area||340mm x 95mm|
|Angle of incidence||88.76°, Complementary angle is 1.24°|
|Light source color temperature||2856±50K|
|Serial number||Name Specification||Number|
|01||Retroreflectiometer For Road Markings||1|
|03||USB Date Line||1|
