Product Details:
|
| Color: | Red | Measurement Range: | 0---1999.9 |
|---|---|---|---|
| Observation Angle: | 0.2° | Angle Of Incidence: | -4° |
| Testing Spot Diameter: | 32mm | Built-in Battery Capacity: | 3500mAh |
| Charger: | DC 8.4V | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| High Light: | 3500mAh Traffic Sign Retroreflectometer,0.2deg reflectometer for road marking,Observation Angle 0.2deg Retroreflectometer |
||

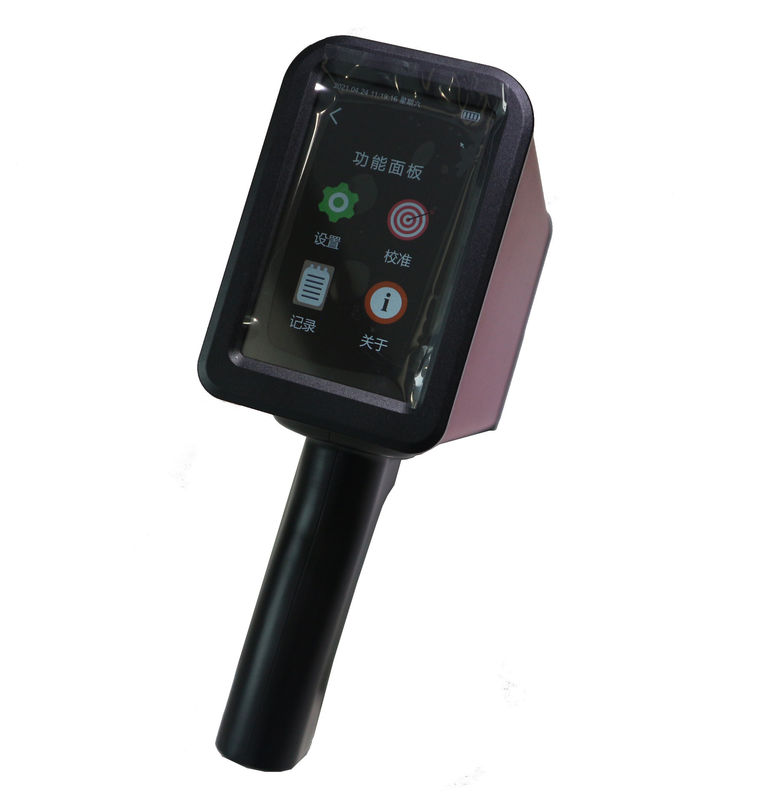

Patented optical system Quick detection Accurate data Manufacturer Traffic Sign Retroreflectometer
The Retroreflectometer is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.
Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Data storage space | 8GB |
| Built-in battery capacity | 3500mAh |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
