Product Details:
|
| Color: | Red | Observation Angle: | 0.2° |
|---|---|---|---|
| Angle Of Incidence: | -4° | Measurement Range: | 0---1999.9 |
| Testing Spot Diameter: | 32mm | Measurement Item: | Retroreflective Coefficient Cd .lx-1 .m-2 |
| Built-in Battery Capacity: | 3500mAh | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| Highlight: | 250mm Retro Reflective Meter,220mm reflectometer for road marking,80mm Retro Reflective Meter |
||
Traffic Sign Retroreflectometer Quick detection Accurate data Manufacturer UNS-JT Patented optical system
Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.
The Retroreflectometer is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
|
Error of repeatability measurement |
≤2% |
|
Error of reproducibility measurement |
≤3% |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Data storage space | 8GB |
| Built-in battery capacity | 3500mAh |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |

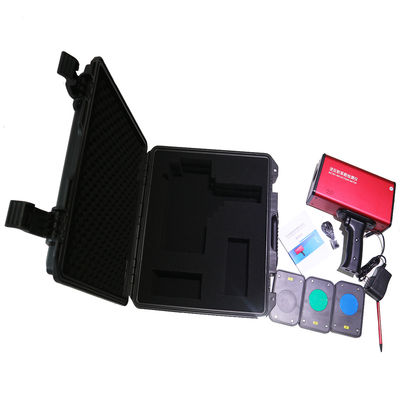

Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
