Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-BX1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

Portable Red Calibration Portable Retroreflectometer 1 Year Warranty

Description
Measurement Items: Retroreflective Coefficient Mcd.m-2.lx-1 Error Of Repeatability Measurement: ≤3%
Observation Angle: 1.05° Angle Of Incidence: 88.76°
Ambient Humidity Diameter: <98%, No Frost Built-in Battery Capacity: 13Ah
Measurement Range: 0---4000 Instrument Size: 700mm X 135mm X 115mm (L×H×W)

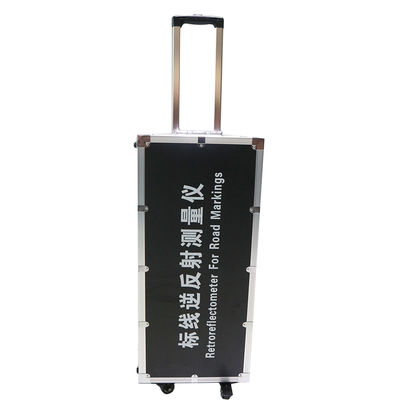

Inner Box: With Brake Wheels
High Light:

13Ah Portable Retroreflectometer

,

1 Year Warranty retroreflectometer

,

1 Year Warranty Portable Retroreflectometer

Easy Portable red calibration Retroreflectometer 1 year warranty inner box with brake wheels

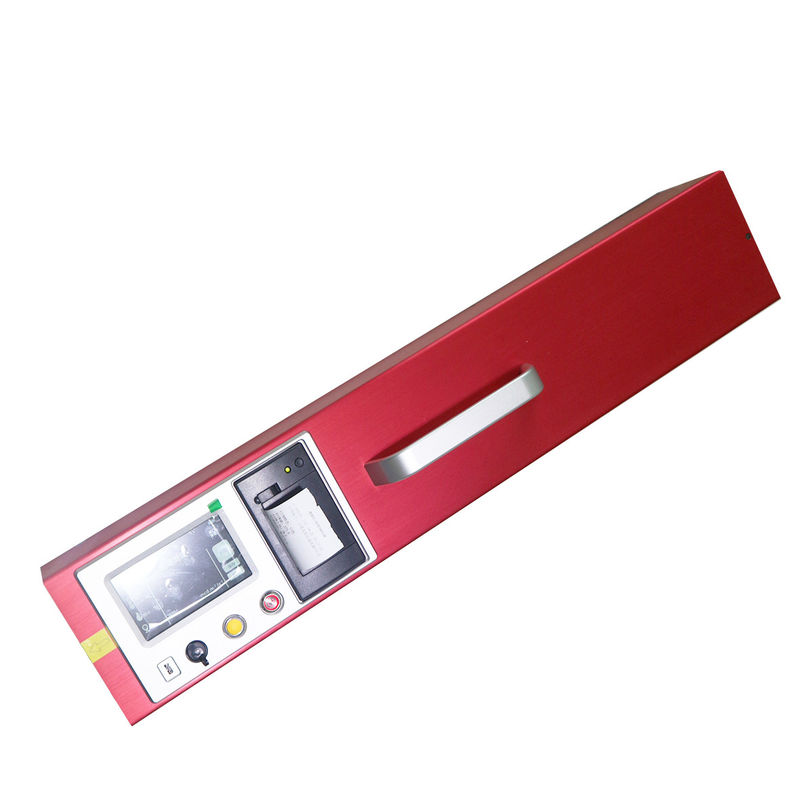

  This instrument is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking. instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.



   This instrument is a kind of professional measuring instrument mainly developed by Hefei SYNTOPE International Trade Co., Ltd. This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.



   Designed with high precision and high stability structure, this marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.



Main technical parameters





Measuring aperture area 340mm x 95mm
Error of repeatability measurement ≤3%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000

Ambient temperature

-15℃~+60℃







Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1








Portable Red Calibration Portable Retroreflectometer 1 Year Warranty 0

Portable Red Calibration Portable Retroreflectometer 1 Year Warranty 1





Portable Red Calibration Portable Retroreflectometer 1 Year Warranty 2





Portable Red Calibration Portable Retroreflectometer 1 Year Warranty 3









Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty
1 Years warranty for all customers .



Spare Parts

A proportion of spare parts will be shipped along with formal orders.



Shipment

DHL , FEDEX , UPS , TNT , EMS :3-7 working days

Any other shipment way could be negoticated
