Product Details:
|
| Measurement Items: | Retroreflective Coefficient Mcd.m-2.lx-1 | Observation Angle: | 1.05° |
|---|---|---|---|
| Angle Of Incidence: | 88.76° | Measurement Range: | 0---4000 |
| Ambient Humidity Diameter: | ＜98%, No Frost | Built-in Battery Capacity: | 13Ah |
| Light Source Color Temperature: | 2856±50K | Ambient Temperature: | -15℃~+60℃ |
| SCREEN: | TOUCH SCREEN | COLOR: | RED |
| High Light: | 2856K retroreflector meter,2856K Handheld Retroreflectometer,RED retroreflector meter |
||

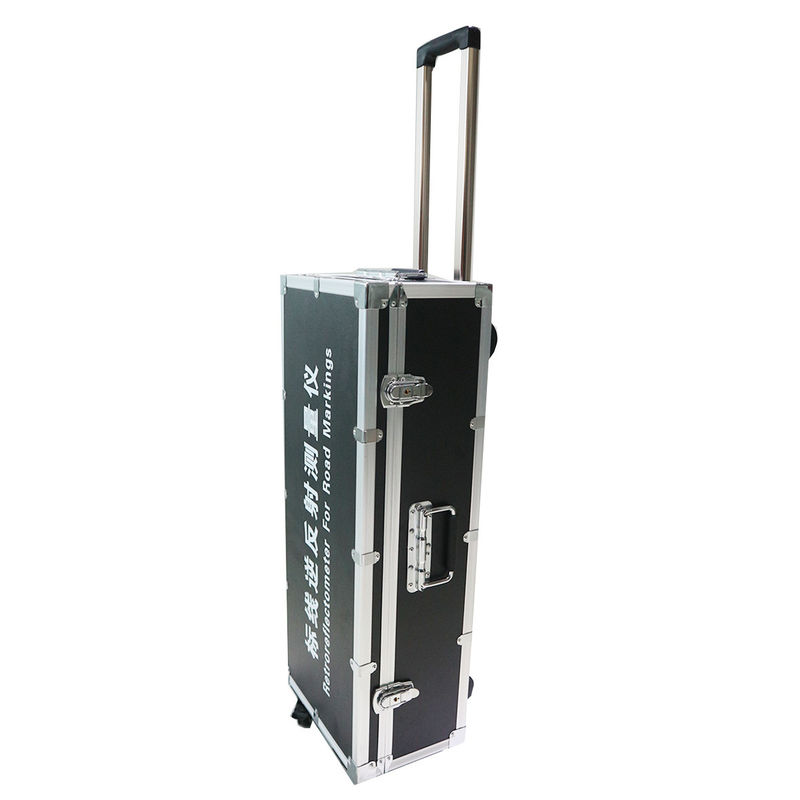

UNS-JT Retroreflector Meter Touch Screen Quick detection and luggage box
This instrument is a kind of professional measuring instrument mainly developed by Hefei SYNTOPE International Trade Co., Ltd. This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.
Designed with high precision and high stability structure, this marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.
Main technical parameters
| Instrument size |
700mm x 135mm x 115mm |
| Error of repeatability measurement | ≤3% |
| Angle of incidence | 88.76° |
| Observation angle | 1.05° |
| Complementary angle | 1.24° |
| Measurement range | 0---4000 |
|
Ambient temperature |
-15℃~+60℃ |
|
Measuring aperture area |
340mm x 95mm |
Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
