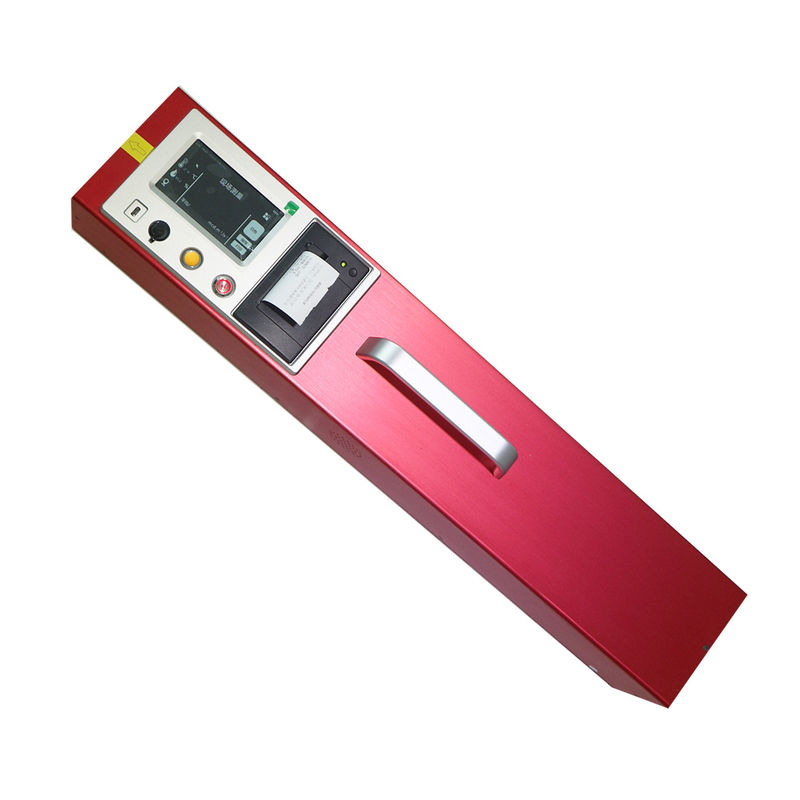

Road Markings 13Ah Portable Retroreflectometer With Touch Screen

Road Markings 13Ah Portable Retroreflectometer With Touch Screen
Road Markings 13Ah Portable Retroreflectometer With Touch Screen Road Markings 13Ah Portable Retroreflectometer With Touch Screen

Large Image :  Road Markings 13Ah Portable Retroreflectometer With Touch Screen

Product Details:
Place of Origin: CHINA
Brand Name: UNS
Certification: ISO9001
Model Number: UNS-BX1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 1000

Road Markings 13Ah Portable Retroreflectometer With Touch Screen

Description
Color: Red Measurement Range: 0---4000
Ambient Humidity Diameter: <98%, No Frost Angle Of Incidence: 88.76°
Observation Angle: 1.05° Complementary Angle: 1.24°
Built-in Battery Capacity: 13Ah Ambient Temperature: -15℃~+60℃
Screen: Touch Screen Calibration: 3 Panels
High Light:

13Ah Portable Retroreflectometer

,

13Ah reflectometer for road marking

,

Touch Screen Portable Retroreflectometer

High-accuracy Road Markings Retroreflectometer With Touch Screen and Voice and Printable



   This instrument is a kind of professional measuring instrument mainly developed by Hefei SYNTOPE International Trade Co., Ltd. This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.



   Designed with high precision and high stability structure, this marking retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection and prints out results on site through the built-in printer. It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of road marking.





Main technical parameters





Error of repeatability measurement ≤3%
Instrument size 700mm x 135mm x 115mm
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000
Ambient temperature -15℃~+60℃
Measuring aperture area 340mm x 95mm



Main Functional Characteristics

Small/light;

Support simple calibration procedure;

Support rapid measurement (Measure the value of the retroreflective coefficient within 3 seconds);

Support storing more than 99,999 test data information, including, measurement data, operator, road section information and testing time, etc.;

Support 8G SD card data storage and support data storage in Excel format, and the data can be exported to the computer through U disk;

Support real-time broadcast of measured data;

Support high brightness LCD transparent touch screen and the operative interface can be seen clearly under illumination;

Support locking on-site detection data and directly print out testing results on site through the printer;

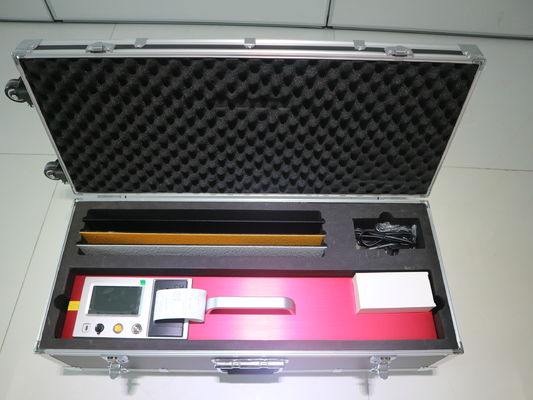

Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1














Road Markings 13Ah Portable Retroreflectometer With Touch Screen 0





Road Markings 13Ah Portable Retroreflectometer With Touch Screen 1







Road Markings 13Ah Portable Retroreflectometer With Touch Screen 2

Road Markings 13Ah Portable Retroreflectometer With Touch Screen 3









Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty
1 Years warranty for all customers .



Spare Parts

A proportion of spare parts will be shipped along with formal orders.



Shipment

DHL , FEDEX , UPS , TNT , EMS :3-7 working days

Any other shipment way could be negoticated
