Product Details:
|
| Measurement Items: | Retroreflective Coefficient Mcd.m-2.lx-1 | Measurement Range: | 0---4000 |
|---|---|---|---|
| Light Source Color Temperature: | 2856±50K | Measuring Aperture Area: | 450mm X 65mm |
| Measurement Line Color: | White, Yellow, Red, Green Or Blue | Power Supply Voltage: | 12V DC |
| Error Of Repeatability Measurement: | ＜5% | Ambient Temperature: | -15℃~+60℃ |
| The Whole Machine Net Weight: | 2.85Kg | Instrument Size: | L310*W140*H230（mm） |
| High Light: | Road Markings Retroreflectometer,Road Markings Retroreflectivity Meter,Rapid Measurement Retroreflector Meter |
||

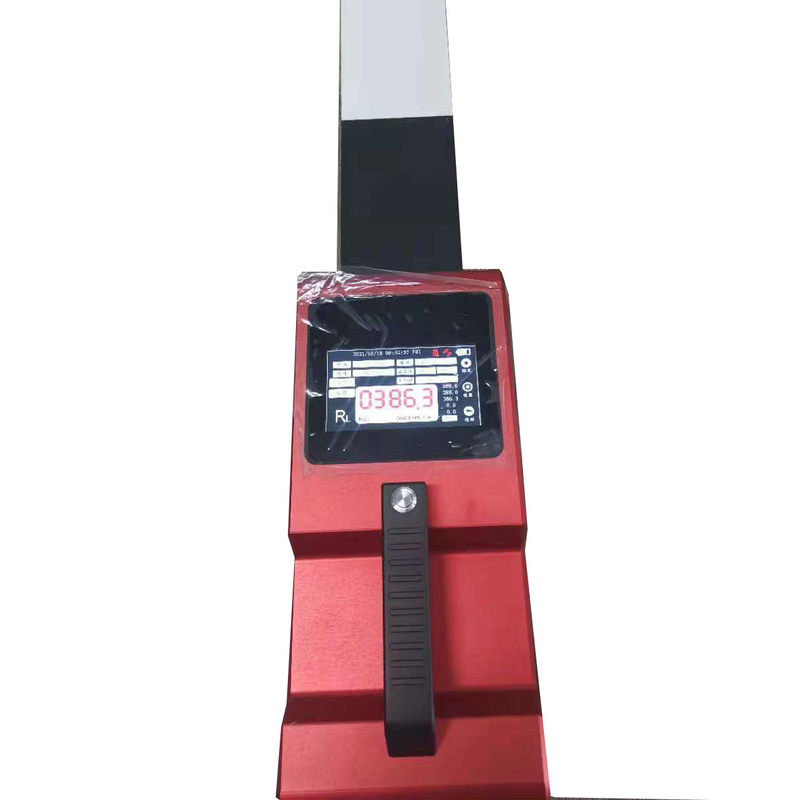

Rapid Measureme,Simple Calibration Procedure Of Retroreflector Meter For Road Markings
Retroreflective marking measuring instrument is a special optical measuring device used to measure the reflective performance of road markings. The measured parameter is the retroreflective coefficient R '(or specific brightness) of the marking, and the unit is mcd • lx -1 • m -2. The instrument is easy to operate and reliable in value. It can be used in laboratories as well as on-site measurement. It is the first-choice instrument for measuring the retroreflective optical performance of highway markings for production, quality supervision, engineering construction, supervision, teaching and scientific research.
This instrument is a kind of professional measuring instrument mainly developed by Hefei SYNTOPE International Trade Co., Ltd. This product has completely independent intellectual property rights and has obtained relevant patents and software copyrights. It also has passed the testing and calibration certification of National Institute of Metrology and Transportation, China and China Academy of Transportation Science.
Main technical parameters
| Measuring aperture area | 450mm x65mm |
| Error of repeatability measurement | ≤5% |
| Angle of incidence | 88.76° |
| Observation angle | 1.05° |
| Complementary angle | 1.24° |
| Measurement range | 0---4000 |
Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
PICTURES
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :5-7 working days
Any other shipment way could be negoticated
