Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm

Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm
Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm

Large Image :  Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm

Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-JT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Payment Terms: T/T
Supply Ability: 1000

Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm

Description
Color: Red Measurement Range: 0---1999.9
Observation Angle: 0.2° Angle Of Incidence: -4°
Testing Spot Diameter: 32mm Built-in Battery Capacity: 3500mAh
Charger: DC 8.4V Instrument Size: 220mm × 250mm × 80mm (L×H×W)
High Light:

220mm Mobile Retroreflectometer

,

250mm Sign Retroreflectometer

,

80mm Mobile Retroreflectometer

Quick detection Accurate data Manufacturer Traffic Sign Retroreflectometer Patented optical system



Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.

Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.



Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Data storage space 8GB
Built-in battery capacity 3500mAh
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)

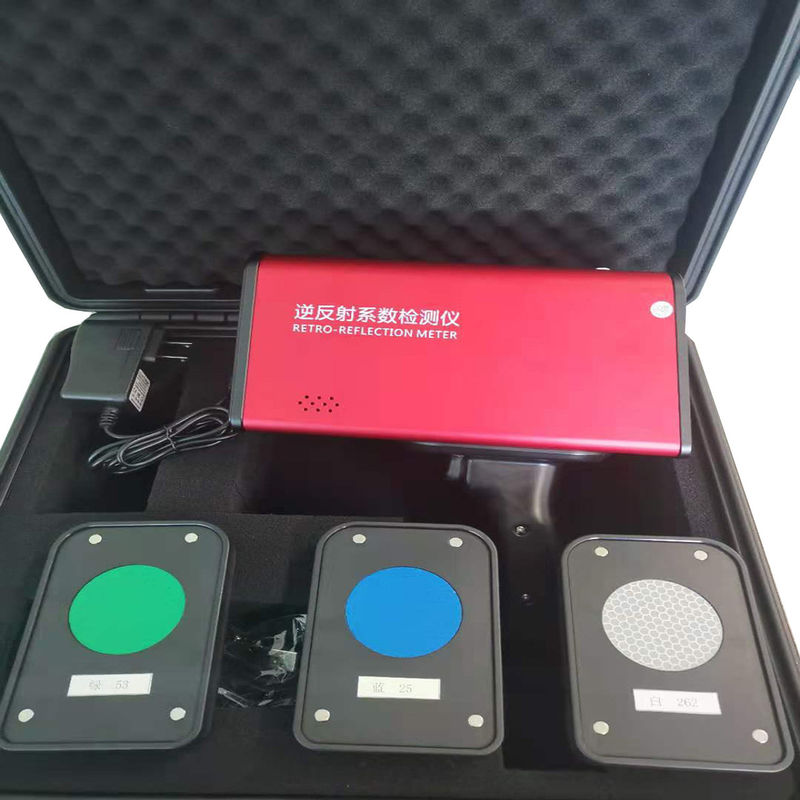

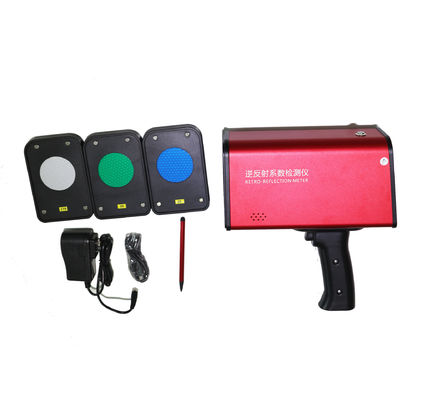

Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1





Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm 0



Accurate Data Traffic Mobile Retroreflectometer 220mm × 250mm × 80mm 1
