Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-JT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Payment Terms: T/T
Supply Ability: 1000

Traffic 3500mAh Sign Retroreflectometer 220mm × 250mm × 80mm

Description
Color: Red Measurement Range: 0---1999.9
Observation Angle: 0.2° Angle Of Incidence: -4°
Testing Spot Diameter: 32mm Built-in Battery Capacity: 3500mAh
Charger: DC 8.4V Instrument Size: 220mm × 250mm × 80mm (L×H×W)
Highlight:

3500mAh 220mm Sign Retroreflectometer

,

Traffic 250mm retroreflector meter

,

3500mAh 80mm Sign Retroreflectometer

Manufacturer UNS-JT Traffic Sign Retroreflectometer  Patented optical system  Quick detection Accurate data



Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.

Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.



Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Data storage space 8GB
Built-in battery capacity 3500mAh
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)

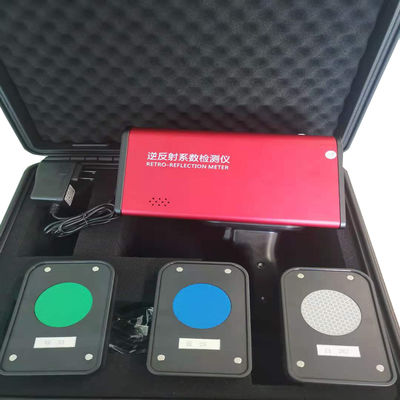

Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1
