Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System

Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System
Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System

Large Image :  Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System

Product Details:
Place of Origin: CHINA
Brand Name: UNS
Model Number: UNS-JT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-3500
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000

Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System

Description
Color: Red Error Of Reproducibility Measurement: ≤3%
Error Of Repeatability Measurement: ≤2% Measurement Range: 0---1999.9
Observation Angle: 0.2° Angle Of Incidence: -4°
Testing Spot Diameter: 32mm Built-in Battery Capacity: 3500mAh
Charger: DC 8.4V Instrument Size: 220mm × 250mm × 80mm (L×H×W)
Highlight:

220mm × 250mm Retroreflectometer

,

250mm × 80mm reflectometer for road marking

,

32mm 3500mAh Retroreflectometer

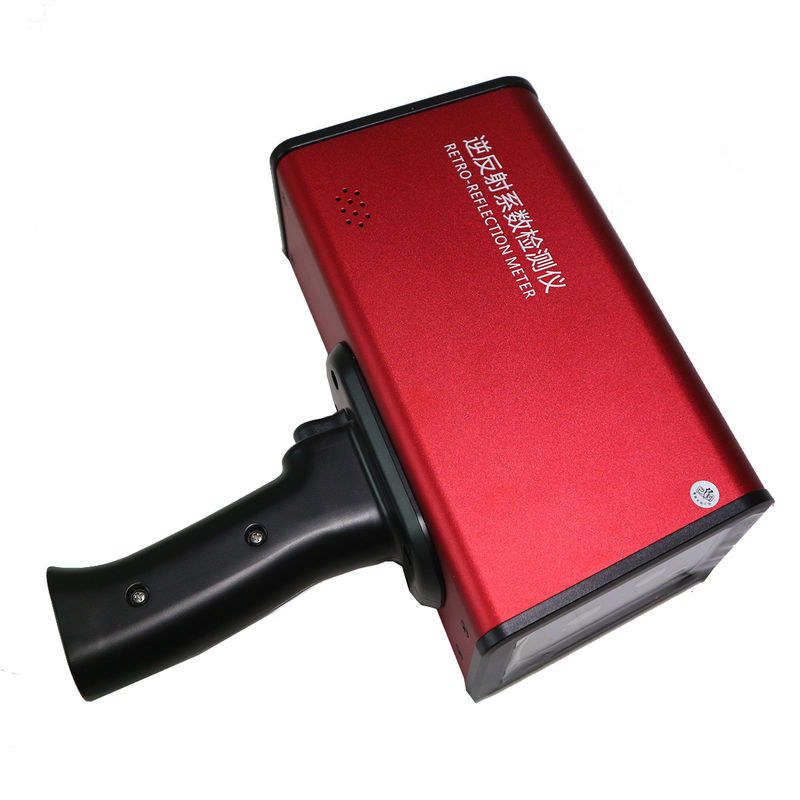

UNS-JT Quick detection Accurate data Manufacturer Traffic Sign Retroreflectometer Patented optical system



Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.

Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.



Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle 0.2°
Angle of incidence -4°
Data storage space 8GB
Built-in battery capacity 3500mAh
Charger DC 8.4V
Instrument size 220mm × 250mm × 80mm (L×H×W)





Packing list

Serial number Name Specification Number
01 Traffic Sign Retro-Reflection Meter 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1

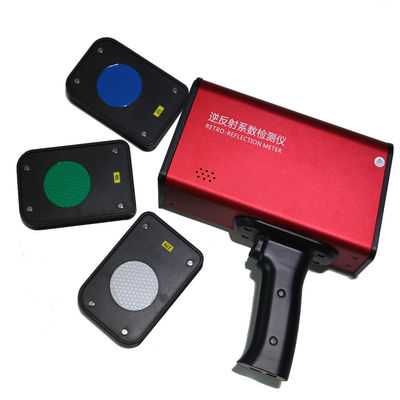

07 Calibration Board 1
08 Stylus 1



Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System 0



Accurate Data 220mm × 250mm × 80mm Retroreflectometer Patented Optical System 1
