Product Details:
|
| Observation Angle: | 0.2°、0.5°、1° | Angle Of Incidence: | -4°、5°、15°、30° |
|---|---|---|---|
| Instrument Size: | 220mm × 250mm × 80mm (L×H×W) | Data Storage Space: | 16GB |
| Error Of Repeatability Measurement: | ≤2% | Error Of Reproducibility Measurement: | ≤3% |
| Measurement Range: | 0---1999.9 | Testing Spot Diameter: | 35mm |
| Built-in Battery Capacity: | 7000mAh | Charger: | DC 8.4V |
| Highlight: | Optical Measurement System Retroreflectometer,Retro Reflective Meter DC 8.4V,DC 8.4V Retroreflectometer |
||

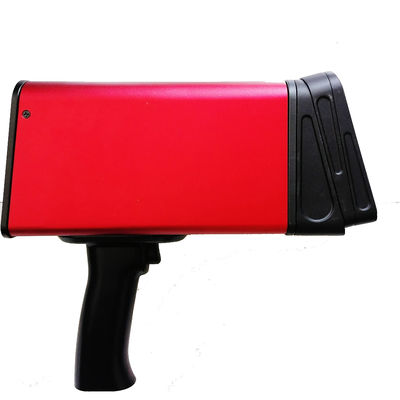

DC 8.4V Multi Angle Retroreflectometer For Advanced Optical Measurement System
The retroreflective coefficient is an important technical indicator of various reflective materials, which is directly related to traffic safety. Our Country issued the GA406-2002 "Truck Reflective Marking" standard as a mandatory standard for the detection of Truck reflective materials, the Ministry of Transport issued the industry standard JT/T279-1995 "Technical Conditions for Highway Traffic Sign Boards", setting various reflective materials 5 grades as the basis for design and inspection of highway traffic signs.
The retroreflective coefficient detector is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle |
0.2°,0.5°,1°
|
| Angle of incidence |
-4°,5°,15°,30°
|
| Data storage space | 16GB |
| Built-in battery capacity | 7000mAh |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 |
Multi Angle Retro-Reflection Meter
|
1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |

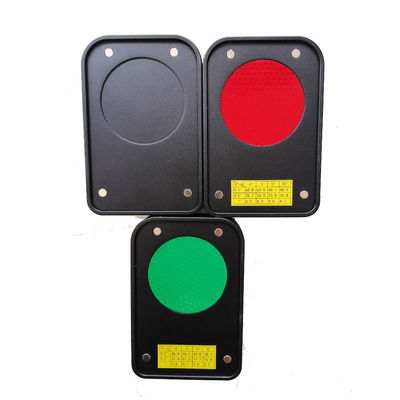

| 07 | Calibration Board | 1 |
| 08 |
Touch pen
|
1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
