Product Details:
|
| Performance: | Simultaneous Measurement Of Multiple Angles | Measurement Items: | Retroreflective Coefficient Cd .lx-1 .m-2 |
|---|---|---|---|
| Error Of Reproducibility Measurement: | ≤3% | Error Of Repeatability Measurement: | ≤2% |
| Built-in Battery Capacity: | 7000mAh | Charger: | DC 8.4V |
| Instrument Size: | 220mm × 250mm × 80mm (L×H×W) | Data Storage Space: | 16GB |
| Light Source Color Temperature: | 2856±50K (Standard Illuminant A) | Testing Spot Diameter: | 35mm |
| High Light: | SD Card Retro Reflective Meter,Data Storage Retro Reflective Meter,16G Retro Reflective Meter |
||

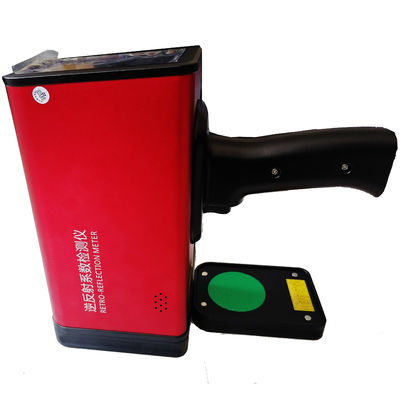

16G SD card data storage of Multi Angle Retroreflectometer with data storage in Excel format
The retroreflective coefficient detector is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.
The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle |
0.2°,0.5°,1°
|
| Angle of incidence |
-4°,5°,15°,30°
|
|
Error of repeatability measurement
|
≤2% |
|
Error of reproducibility measurement
|
≤3% |
| Charger | DC 8.4V |
|
Ambient humidity
|
＜98%, no frost
|
Packing list
| Serial number | Name Specification | Number |
| 01 |
Multi Angle Retro-Reflection Meter
|
1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |

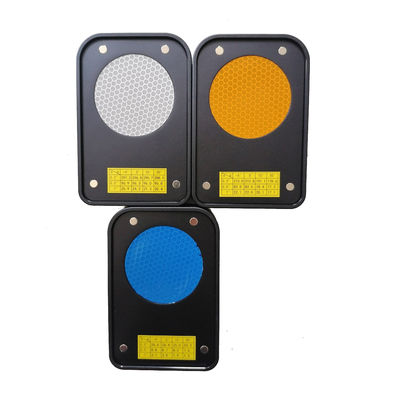

| 07 | Calibration Board | 1 |
| 08 |
Touch pen
|
1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
