Product Details:
|
| Performance: | Simultaneous Measurement Of Multiple Angles | Test Data: | More Than 99,999 |
|---|---|---|---|
| Observation Angle: | 0.2°、0.5°、1° | Angle Of Incidence: | -4°、5°、15°、30° |
| Ambient Humidity: | ＜98%, No Frost | Built-in Battery Capacity: | 7000mAh |
| Charger: | DC 8.4V | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| Data Storage Space: | 16GB | Light Source Color Temperature: | 2856±50K (Standard Illuminant A) |
| High Light: | 7000mAh Retro Reflective Meter,Color Select Retro Reflective Meter,16GB Data Storage Retro Reflective Meter |
||
Storing more than 99,999 test data information of Multi Angle Retroreflectometer with the color select
The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.
The retroreflective coefficient is an important technical indicator of various reflective materials, which is directly related to traffic safety. Our Country issued the GA406-2002 "Truck Reflective Marking" standard as a mandatory standard for the detection of Truck reflective materials, the Ministry of Transport issued the industry standard JT/T279-1995 "Technical Conditions for Highway Traffic Sign Boards", setting various reflective materials 5 grades as the basis for design and inspection of highway traffic signs.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle |
0.2°,0.5°,1°
|
| Angle of incidence |
-4°,5°,15°,30°
|
|
Error of repeatability measurement
|
≤2% |
|
Error of reproducibility measurement
|
≤3% |
| Charger | DC 8.4V |
|
Ambient humidity
|
＜98%, no frost
|
Packing list
| Serial number | Name Specification | Number |
| 01 |
Multi Angle Retro-Reflection Meter
|
1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |

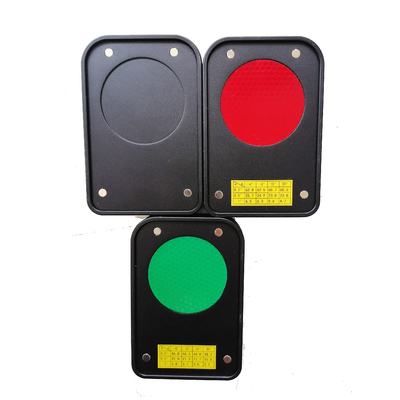

| 07 | Calibration Board | 1 |
| 08 |
Touch pen
|
1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
