Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke

Certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
China HEFEI SYNTOP INTERNATIONAL TRADE CO.,LTD. certification
I'm Online Chat Now

Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke

Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke
Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke

Large Image :  Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke

Product Details:
Place of Origin: CHINA
Brand Name: STP
Model Number: STP-MASR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 8000-9000
Packaging Details: inner box and master carton , 1pc per carton
Payment Terms: T/T
Supply Ability: 1000

Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke

Description
Performance: Simultaneous Measurement Of Multiple Angles Measurement Range: 0---1999.9
Test Data: More Than 99,999 Observation Angle: 0.2°、0.5°、1°
Angle Of Incidence: -4°、5°、15°、30° Ambient Humidity: <98%, No Frost
Built-in Battery Capacity: 7000mAh Instrument Size: 220mm × 250mm × 80mm (L×H×W)
Error Of Repeatability Measurement: ≤2% Error Of Reproducibility Measurement: ≤3%
High Light:

Anti Scratch Retro Reflective Meter

,

Metal Jacket Retro Reflective Meter

,

Low Illumination Retro Reflective Meter

Low illumination and high sensitivity photoelectric of Multi Angle Retroreflectometer with Anti scratch full metal jacke

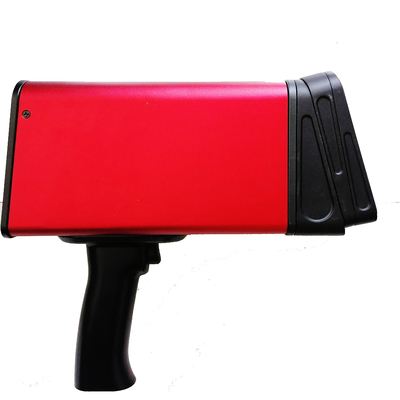

  The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.



  The retroreflective coefficient detector is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.





Main technical parameters

Measurement items retroreflective coefficient cd .lx .m-2
Measurement range 0---1999.9
Observation angle
0.2°,0.5°,1°
Angle of incidence
-4°,5°,15°,30°
Error of repeatability measurement
≤2%
Error of reproducibility measurement
≤3%
Charger DC 8.4V
Ambient humidity
98%, no frost









Packing list

Serial number Name Specification Number
01
Multi Angle Retro-Reflection Meter
1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1

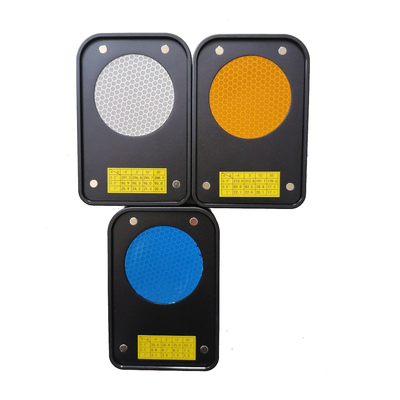

07 Calibration Board 1
08
Touch pen
1











Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke 0

Low Illumination Retro Reflective Meter Anti Scratch Full Metal Jacke 1



Our Service





Customized Logo


Free logo printing will be offered if order quantity is above 1pcs.



Our Warranty


1 Years warranty for all customers .



Spare Parts



A proportion of spare parts will be shipped along with formal orders.





Shipment



DHL , FEDEX , UPS , TNT , EMS :3-7 working days



Any other shipment way could be negoticated
