Product Details:
|
| Measurement Range: | 0---1999.9 | LCD: | The 4.3-inch |
|---|---|---|---|
| Language: | Chinese And English | Test Data: | More Than 99,999 |
| Warranty: | 1 Year | Customized Logo: | Yes |
| Weight: | 1.7kg | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| Ambient Temperature:: | -5℃~+50℃ | Ambient Humidity: | ＜98%, No Frost |
| High Light: | Simulation Data Acquisition RetroReflective Meter,High Precision Retro Reflective Meter,High Stability Retro Reflective Meter |
||
High Precision And High Stability Simulation Data Acquisition With Retro Reflective Meter
Designed with high precision and high stability structure, The sign retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.

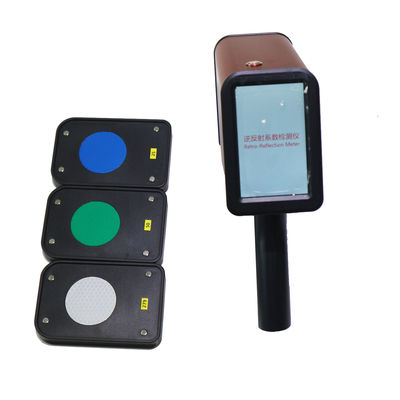

The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Built-in battery capacity | 2000mAh |
| Charger | DC 5V |
| Instrument size | 200mm × 230mm × 70mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
