Product Details:
|
| LCD: | The 4.3-inch | Language: | Chinese And English |
|---|---|---|---|
| Test Data: | More Than 99,999 | Measurement Range: | 0---1999.9 |
| Observation Angle: | 0.2° | Angle Of Incidence: | -4° |
| Testing Spot Diameter: | 32mm | Light Source Color Temperature: | 2856±50K |
| Warranty: | 1 Year | Customized Logo: | Yes |
| High Light: | Multiple Measurements Retro Reflective Meter,Calculate Average Retro Reflective Meter,4.3'' LCD Retro Reflective Meter |
||

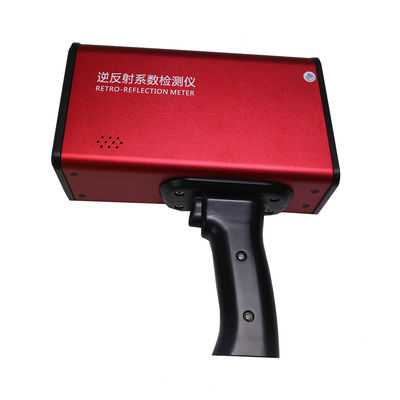

Rapid Measurement And Multiple Measurements To Calculate The Average With Retro Reflective Meter
It is the first-choice instrument for measuring the retroreflective optical performance of highway markings for production, quality supervision, engineering construction, supervision, teaching and scientific research.
The retroreflective coefficient is an important technical indicator of various reflective materials, which is directly related to traffic safety. Our Country issued the GA406-2002 "Truck Reflective Marking" standard as a mandatory standard for the detection of Truck reflective materials, the Ministry of Transport issued the industry standard JT/T279-1995 "Technical Conditions for Highway Traffic Sign Boards", setting various reflective materials 5 grades as the basis for design and inspection of highway traffic signs.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Built-in battery capacity | 2000mAh |
| Charger | DC 5V |
| Instrument size | 200mm × 230mm × 70mm (L×H×W) |

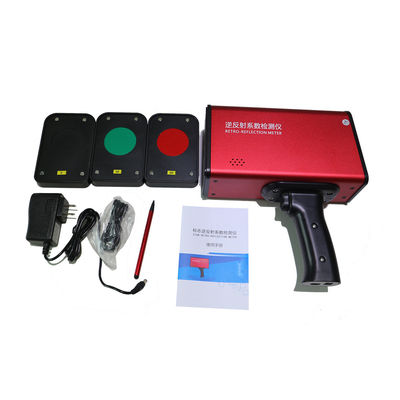

Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS : 3-7 working days
Any other shipment way could be negoticated
