Product Details:
|
| Language: | Chinese And English | Warranty: | 1 Year |
|---|---|---|---|
| Measurement Color: | White, Yellow, Red, Green Or Blue | Test Data: | More Than 99,999 |
| LCD: | The 4.3-inch | Measurement Range: | 0---1999.9 |
| Error Of Repeatability Measurement: | ≤2% | Error Of Reproducibility Measurement: | ≤3% |
| SD Card: | 8G | Customized Logo: | Yes |
| Highlight: | Automatic Check Retro Reflective Meter,DC 5V Retro Reflective Meter,Automatic Check Zero Retroreflectometer |
||

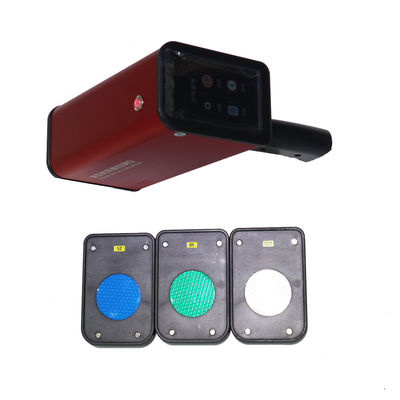

Automatic Check Zero And Calibration Measurement Standard Of Retro Reflective Meter
It is the first-choice instrument for measuring the retroreflective optical performance of highway markings for production, quality supervision, engineering construction, supervision, teaching and scientific research.
The retroreflective marking measuring instrument is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site. It is an easy-to-use hand-held photoelectric instrument. It can also be used for traffic safety management and highway, railway, aviation and other related departments to conduct on-site measurement of retroreflective signs, etc., and can also be used for the reflective performance of truck reflective signs. The measurement is used to monitor the reflective quality of the produced retroreflective materials to ensure that the retroreflective marking materials meet the requirements of the relevant standards.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Built-in battery capacity | 2000mAh |
| Charger | DC 5V |
| Instrument size | 200mm × 230mm × 70mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
