Product Details:
|
| Multiple Measurements: | Yes | Warranty: | 1 Year |
|---|---|---|---|
| Observation Angle: | 0.2°、0.5°、1° | Angle Of Incidence: | -4°、5°、15°、30° |
| LCD: | 4.3-inch | OEM: | Yes |
| Jacket: | Anti Scratch Full Metal | Measurement Color: | White, Yellow, Red, Green Or Blue |
| Testing Spot Diameter: | 35mm | Instrument Size: | 220mm × 250mm × 80mm (L×H×W) |
| High Light: | 4.3'' LCD Retroreflectometer,Full Metal Retro Reflective Meter,4.3'' LCD Retro Reflectometer |
||

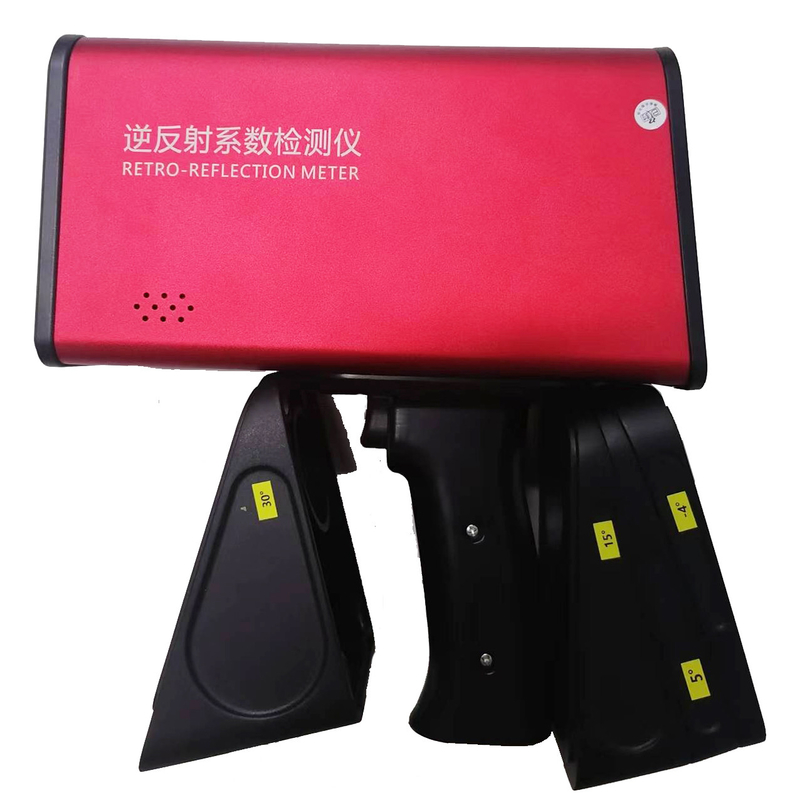

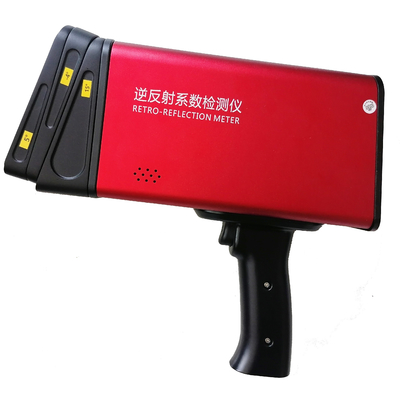

Anti Scratch Full Metal Jacket And Smart Standby Management With Retro Reflective Meter
The multi angle retroreflectometer is an instrument used to measure the photometric performance (retroreflective coefficient R') of retroreflective materials on site.
Multi Angle Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2°,0.5°,1° |
| Angle of incidence |
-4°,5°,15°,30°
|
| Built-in battery capacity |
7000mAh
|
| Charger |
DC 8.4V
|
| Instrument size |
220mm × 250mm × 82mm (L×H×W)
|
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS : 3-7 working days
Any other shipment way could be negoticated
